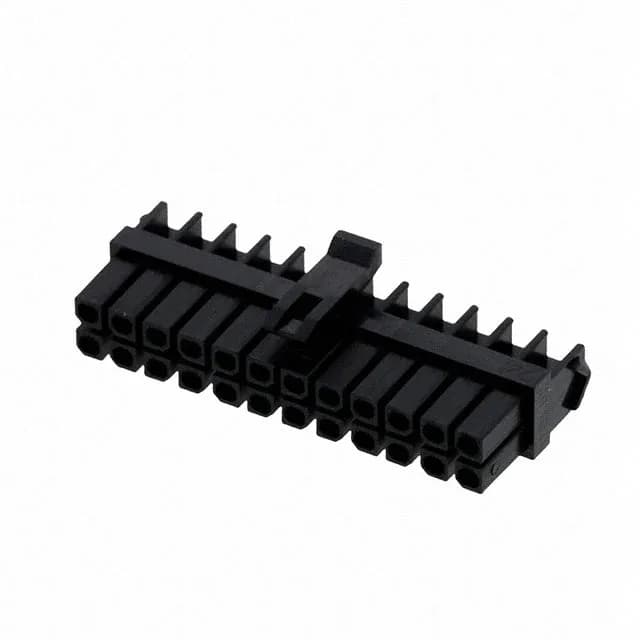

Molex 1729522401 Micro-Fit 3.0 Receptacle Housing, 24 Pos

MPN1729522401
Active

Molex Micro-Fit 3.0 172952 series, receptacle housing, 24 positions, 2 rows, 0.118" (3.00mm) pitch, free hanging, crimp termination, black, latch holder, -40°C to 105°C.

$1.1400Ref. price · indicative, final on quote
Molex 1729522401 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-Fit 3.0 172952
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1729522401 specifications
ParameterValue
SeriesMicro-Fit 3.0 172952
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.118\" (3.00mm)
PackageBulk
Row spacing0.118\" (3.00mm)
Rows2
Contact terminationCrimp
Positions24

Product details

The Molex 1729522401 is a 24-circuit, dual-row receptacle housing from the Micro-Fit 3.0 172952 series.

Wiring and Mating — What It Pairs With

The crimp termination accepts the Molex Micro-Fit 3.0 female terminal (sold separately); wire gauge selection and crimp tooling follow the terminal datasheet. The dual-row layout means the 24 circuits occupy a connector body roughly 36 mm wide, which matters for routing the harness through a tight enclosure pass-through.

The base product number 172952 covers the full family of Micro-Fit 3.0 receptacle housings; the suffix 2401 encodes the 24-position, dual-row, black variant. For BOM planning, factor in the separate terminal order — the housing alone does not complete the interconnect.

Frequently asked questions

Does Molex 1729522401 include contacts?

No. The 1729522401 ships as an empty housing only. The female socket crimp terminals must be ordered separately as a line item on the BOM.

What is the pitch of 1729522401?

The pitch is 0.118" (3.00 mm), which is the standard Micro-Fit 3.0 spacing. The row spacing is also 3.00 mm.

Is 1729522401 compatible with Micro-Fit 3.0 headers?

Yes. The latch holder engages the header locking ramp for vibration-resistant retention.
