Molex 1731070159 — D-Sub & D-Shaped Connectors

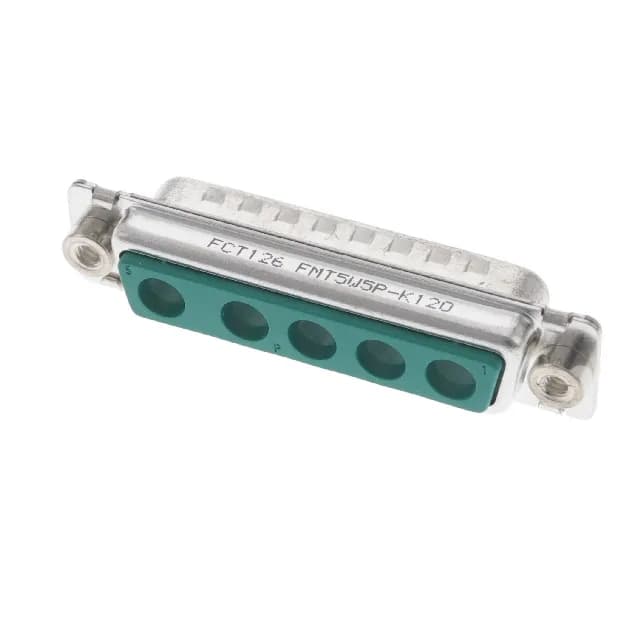

Molex 1731070159 FM D-Sub Combo Plug Housing, 5 Pos, Green

MPN1731070159
Active

Molex FM, FCT 173107 series D-Sub combo plug housing, 5 (coax or power) positions, 1 row, free-hanging, green polyester shell, steel tin-plated shell, grounding indents, -55°C to 130°C, ROHS3, contacts not included.

$5.9900Ref. price · indicative, final on quote
Molex 1731070159 datasheet (PDF)
RoHSROHS3 Compliant
SeriesFM, FCT 173107
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1731070159 specifications
ParameterValue
SeriesFM, FCT 173107
TypeCoax or Power
MountingFree Hanging (In-Line)
Connector typePlug for Male Contacts
Shell size, connector layout3 (DB, B) - 5W5
Operating temperature-55°C ~ 130°C
ColorGreen
Dielectric materialPolyester, Glass Filled
Shell material, finishSteel, Tin Plated
NoteContacts Not Included
PackageBulk
FeaturesGrounding Indents
Flange featureHousing/Shell (Unthreaded)
Rows1
Positions5 (Coax or Power)

Product details

The Molex 1731070159 is a D-Sub combo plug housing from the FM, FCT 173107 series. It accepts 5 coax or power contacts in a single-row layout, using the standard 3 (DB, B) - 5W5 shell size. The green polyester glass-filled shell is free-hanging (in-line) and includes grounding indents on the steel tin-plated shell for shield continuity.

Contacts Are Not Included — Plan Your BOM

This housing ships empty. Factor the contact order code into your BOM line alongside this housing.

The 1731070159 mates with a D-Sub combo receptacle housing of the same shell size (3 (DB, B) - 5W5) and contact arrangement. The unthreaded flange means the mating pair relies on the jack-screws or slide-lock hardware from the receptacle side for retention — confirm the receptacle includes the locking hardware if vibration is a concern. Termination is crimp-style via the separately ordered contacts; the free-hanging design allows the harness to be routed without a PCB mount.

Frequently asked questions

Where can I buy 1731070159 available via RFQ confirmation?

The 1731070159 is sourced to order through independent distribution. Submit an RFQ for current availability and pricing — stock is confirmed at quote time against your target quantity.

Does 1731070159 come with contacts?

No — the housing ships without contacts. The listing explicitly notes contacts are not included. You must order the matching coax or power crimp terminals separately.

What is the mating connector for 1731070159?

The mating half is a D-Sub combo receptacle housing with the same 3 (DB, B) - 5W5 shell layout and 5 coax or power positions. The unthreaded flange means the receptacle should provide the locking jack-screws or slide-lock hardware for retention.
