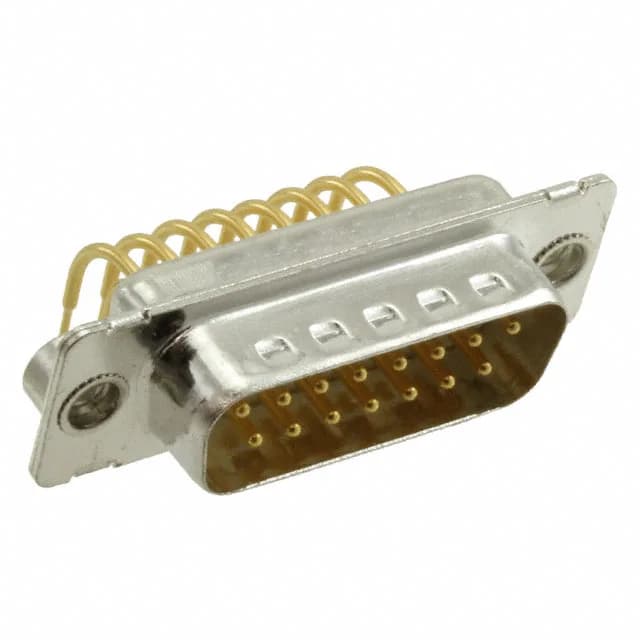

Molex 1731090062 D-Sub Plug, 15-Pin Right Angle, 5A

MPN 1731090062
Active

Molex F, FCT 173109 D-Sub plug, 15 circuits, 2 rows, right-angle PCB mount, solder termination, gold-plated contacts, 5A rating.

$14.7800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSNot applicable
IncotermsDAP / DDP Available
SeriesF, FCT 173109
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1731090062 key specifications
ParameterValue
SeriesF, FCT 173109
TypeSignal
MountingThrough Hole, Right Angle
Connector typePlug, Male Pins
Current rating5A
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 150°C
ColorNatural
Contact materialBrass
Dielectric materialPolycyclohexylenedimethylene Terephthalate (PCT)
Shell material, finishSteel, Tin Plated
PackageBulk

All specifications

1731090062 additional specifications
ParameterValue
FeaturesGrounding Indents
TerminationSolder
Contact finishGold
Flange featureBoard Side (4-40)
Rows2
Backset spacing0.406\" (10.30mm)
Positions15

Product details

Right-Angle D-Sub Plug for Board-Edge Signal Interconnects

It belongs to the F, FCT 173109 series and uses a standard DA-15 shell layout (size 2, DA, A). This is a practical EMI control measure in cable assemblies where the shield is terminated at the backshell. That temperature envelope makes this plug usable in industrial cabinets, automotive under-hood zones, and outdoor telecom gear where the ambient swings beyond standard commercial limits.

Board Mounting and Mechanical Retention

The right-angle through-hole termination requires the PCB to have a row of plated through-holes matching the 0.318-inch (8.08 mm) row spacing standard for DA-15 D-Sub connectors. The flange includes board-side 4-40 threaded inserts for screw-lock retention, which is the standard method for securing the connector against the insertion and extraction forces of the mating cable plug. A separate backshell or hood is required to complete the cable assembly. The grounding indents on the shell are designed to interface with the shield of a metal backshell, so the hood selection should include a matching shield connection to maintain the EMI integrity of the mated pair.
