Molex 1731090177

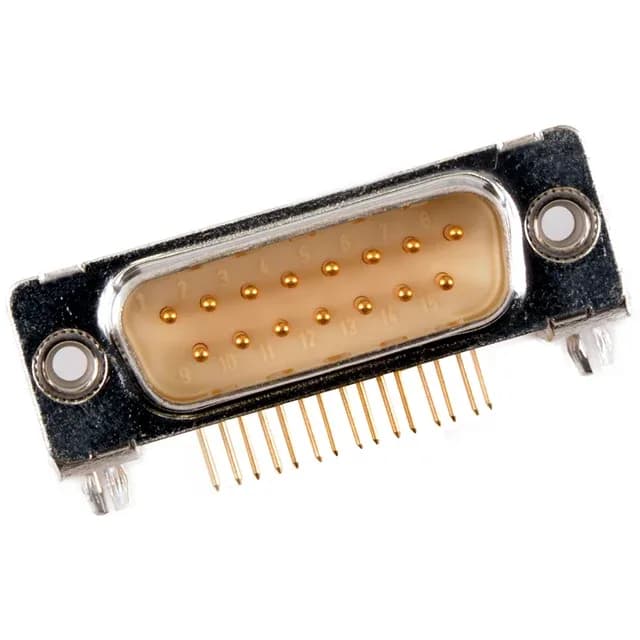

Molex 1731090177 FCT D-Sub Plug, 15 Pos, Right Angle, 5A

MPN 1731090177
Active

Molex FCT 173109 D-Sub plug, 15 positions, DA-15 shell, right-angle through-hole, 5A, gold-plated machined contacts, board locks, white housing.

$12.3100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesF, FCT 173109
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1731090177 key specifications
ParameterValue
SeriesF, FCT 173109
TypeSignal
MountingThrough Hole, Right Angle
Connector typePlug, Male Pins
Current rating5A
Contact formMachined
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 125°C
ColorWhite
Contact materialCopper Alloy
Dielectric materialPolybutylene Terephthalate (PBT)
Shell material, finishSteel, Tin Plated

All specifications

1731090177 additional specifications
ParameterValue
PackageBulk
FeaturesBoard Lock, Grounding Indents, Mounting Brackets
TerminationSolder
Contact finishGold
Flange featureBoard Side (4-40)
Rows2
Positions15

Product details

The Molex 1731090177 is a 15-position D-Sub plug from the FCT 173109 series, housed in a standard DA-15 shell layout. The white polybutylene terephthalate (PBT) housing and tin-plated steel shell give it a distinct visual identity on the board — useful for quick identification during harness assembly or field swap-out.

Board Locks, Grounding, and Mounting Hardware

The flange uses a 4-40 threaded insert on the board side, matching the standard jackscrew hardware for a DA-15 shell. If you are replacing a panel-mounted D-sub, confirm the jackscrew thread pitch — 4-40 is the common size for this shell layout.

As a plug with male pins, this connector mates with a standard 15-position D-Sub receptacle (female socket) sharing the same DA-15 shell size. Termination is solder-only — the machined pins are designed for through-hole soldering, not press-fit or wire-wrap. For a wire-to-board harness, you would use a mating female D-sub with solder cup or crimp terminals, depending on the receptacle variant.
