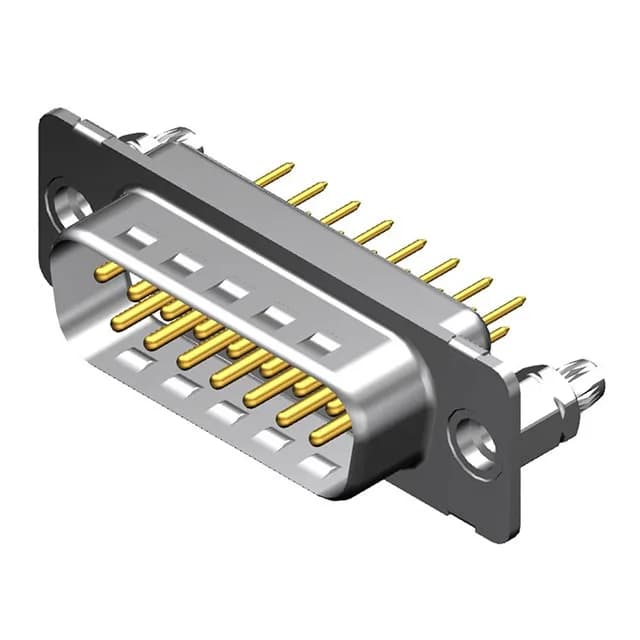

15-Position D-Sub Plug, Male Pins, Through-Hole
The Molex 1731091255 is a 15-position D-Sub plug with male pins from the F, FCT 173109 series. It uses a standard DA-15 shell layout (2 rows) and is terminated via through-hole solder pins. The steel shell is tin-plated and includes grounding indents for improved EMI performance.
Grounding Indents and Shell Design
The tin-plated steel shell provides a robust ground path and corrosion resistance for industrial environments.
This plug mates with a standard 2 (DA, A) D-Sub receptacle (female socket) — the same shell size layout. The machined copper alloy contacts are rated for signal-level current at 5 A per circuit.
