Molex 1731091399 — D-Sub Cable Assemblies

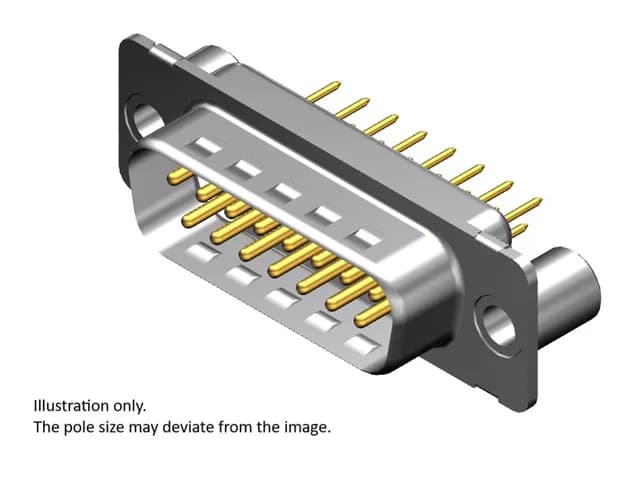

Molex 1731091399 FCT D-Sub Plug, 25-Pin Male, 5A

MPN1731091399
Active

Molex F, FCT 173109 D-Sub Plug, Male Pins, 25 Positions, 2 Rows, 5A, Through Hole, Solder Termination, White Polyester Shell, UL94 V-0.

$12.0700Ref. price · indicative, final on quote
Molex 1731091399 datasheet (PDF)
RoHSROHS3 Compliant
SeriesF, FCT 173109
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1731091399 key specifications
ParameterValue
SeriesF, FCT 173109
TypeSignal
MountingThrough Hole
Connector typePlug, Male Pins
Current rating5A
Contact formMachined
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 125°C
ColorWhite
Contact materialCopper Alloy
Primary materialMetal
Dielectric materialPolyester, Glass Filled

All specifications

1731091399 additional specifications
ParameterValue
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageBulk
FeaturesGrounding Indents
TerminationSolder
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions25

Product details

DB-25 Male Plug for Signal and Low-Power I/O

The Molex 1731091399 is a 25-position D-Sub plug (male pin) from the F, FCT 173109 series, built for standard DB-25 signal interfaces.

Pinout and Mating Half

This plug uses shell size 3, layout DB-B — 25 male pins in two rows. It mates with any standard D-Sub receptacle of the same shell size. The unthreaded housing/shell flange accepts a standard D-Sub backshell or slide-lock hardware.

Shielding and Grounding

The shell material and finish are steel with tin plating, offering corrosion resistance and a solid ground reference for cable-braid termination.

Frequently asked questions

Is molex 1731091399 RoHS compliant?

Yes, the 1731091399 is ROHS3 compliant, meeting the latest EU directive on restricted substances.

What is the pinout of molex 1731091399?

The 1731091399 uses a standard DB-25 pinout with 25 male pins in two rows, arranged per the DB-B (shell size 3) layout. It mates with any standard DB-25 female receptacle.
