Molex 1731110011

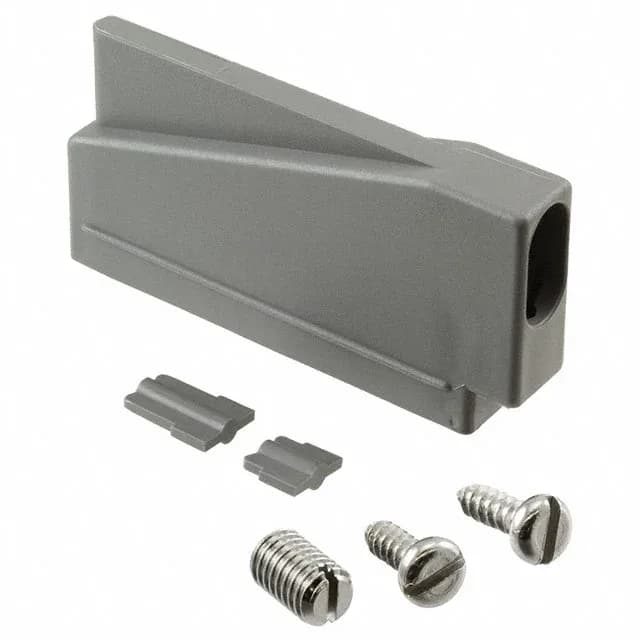

Molex 1731110011 Backshell, 37-Pos, 90° Exit, Gray

MPN 1731110011
Active

Molex F-PHR FCT 1731110011 D-sub backshell, 37 positions, 90° cable exit, gray nylon, unshielded, bulk, includes strain relief and assembly hardware.

$2.7200 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesF-PHR, FCT 173111
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1731110011 specifications
ParameterValue
SeriesF-PHR, FCT 173111
Cable typeRound
Accessory typeOne Piece Backshell
Cable exit90°
ColorGray
MaterialPolyamide (PA), Nylon
Primary materialPlastic
PackageBulk
HardwareAssembly Hardware, Strain Relief
ShieldingUnshielded
Positions37
Compatible D-Sub size37pos and HD62pos
Compatible shell sizeC

Product details

What This Backshell Covers and How It Fits

The Molex 1731110011 is a one-piece D-sub backshell from the FCT series, designed for 37-position connectors. The 90° cable exit routes the round cable parallel to the panel, saving depth in enclosures where straight-out clearance is tight. The gray polyamide (nylon) body is unshielded — this is a strain-relief and cable-management shell, not an EMI can. It mates with standard D-sub connectors in shell size C — that covers both 37-position and high-density 62-position D-subs. The backshell includes assembly hardware and a strain relief clamp, so no separate order for jack-screws or the cable gland is needed.

Cable Exit and Strain Relief — What to Expect

The 90° cable exit accepts round cable. The integrated strain relief grips the jacket, not the individual conductors, to prevent pull-out at the solder cup or IDC termination. The assembly hardware (typically jack-screws and a slide-lock or hex standoffs) is included, so the backshell mounts directly to the D-sub connector without sourcing extra fasteners.

Compatibility Check — D-Sub Shell Size C

This backshell fits any standard D-sub connector in shell size C — that includes 37-position standard-density D-subs and 62-position high-density D-subs. It is not specific to Molex connectors; it will fit Amphenol, TE, and other manufacturers' D-subs of the same shell size. The 37-position count is the most common mating half.
