Molex 1731110462 — D-Sub Backshells & Hoods

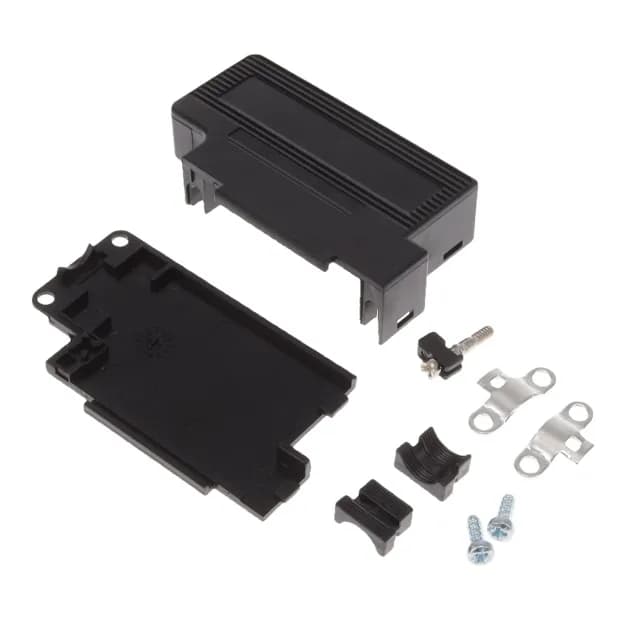

Molex 1731110462 Backshell, 25-Pos, 90° Exit, Active

MPN1731110462
Active

Molex FCT Two Piece Backshell, 25 Position, Black, 90° Cable Exit, ABS/PC, Assembly Hardware Included, Bulk.

$5.4300Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1731110462 specifications
ParameterValue
Cable typeRound
Accessory typeTwo Piece Backshell
Cable exit90°
ColorBlack
MaterialAcrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC)
Primary materialPlastic
PackageBulk
FeaturesMating Screws
HardwareAssembly Hardware, Cable Clamp, Strain Relief
ShieldingUnshielded
Positions25
Compatible D-Sub size25pos and HD44pos
Compatible shell sizeB

Product details

Two-Piece Backshell for 25-Position D-Sub Connectors

The Molex 1731110462 is a two-piece plastic backshell designed for standard 25-position D-subminiature connectors, with the added ability to fit HD44-size shells as well. It provides strain relief, cable clamping, and a 90° cable exit — critical when routing a round cable bundle tight against a panel or enclosure wall. The housing is molded from an ABS/PC blend, giving it a balance of impact resistance and dimensional stability for everyday industrial use.

Included Hardware and Assembly Details

This backshell ships with the assembly hardware, cable clamp, and strain relief included — no separate sourcing for those parts. The mating screws secure the backshell to the D-sub connector, and the cable clamp grips the round cable jacket to transfer pull forces away from the solder or crimp terminations.

Frequently asked questions

What is the Molex 1731110462 backshell made of?

The housing is molded from an ABS/PC (Acrylonitrile Butadiene Styrene / Polycarbonate) blend, giving it good impact resistance and dimensional stability for industrial environments.

Does the 1731110462 include the cable clamp and strain relief?

Yes, the backshell ships with assembly hardware, cable clamp, and strain relief included — no separate ordering required.

Which connectors are compatible with the 1731110462 backshell?

It is designed for standard 25-position D-sub connectors (shell size B) and also fits HD44-size shells, giving flexibility for high-density applications.
