Molex 1731120014

Molex 1731120014 Jackscrew Socket, 4-40 Thread

MPN 1731120014
Active

Molex F-GSCH, FCT series jackscrew socket, 4-40 thread, 0.315" (8.00mm) length below head, hardware included, bag pack, for D-sub connectors.

$0.9500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesF-GSCH, FCT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1731120014 specifications
ParameterValue
SeriesF-GSCH, FCT
Accessory typeJackscrew Socket
PackageBag
FeaturesHardware Included
Connector size4-40 Socket, 4-40 Screw
Length - below head0.315\" (8.00mm)
For use with (Related products)D-Sub Connectors
Length - threaded portion below head0.315\" (8.00mm)

Product details

D-Sub Jackscrew Socket, 4-40 Thread, Hardware Included

The Molex 1731120014 is a jackscrew socket from the F-GSCH, FCT series, designed for use with D-sub connectors. It carries a 4-40 Socket, 4-40 Screw thread size and includes all necessary hardware for installation. The threaded portion below the head measures 0.315" (8.00mm), which is the standard length for securing D-sub backshells and hoods to the panel or connector body.

Thread Size and Fit — 4-40 UNC Standard

The 4-40 UNC thread is the industry-standard size for D-subminiature jackscrew hardware. The 0.315" (8.00mm) threaded length is enough to pass through a standard D-sub shell and panel thickness without bottoming out.

What's in the Bag — Hardware Included

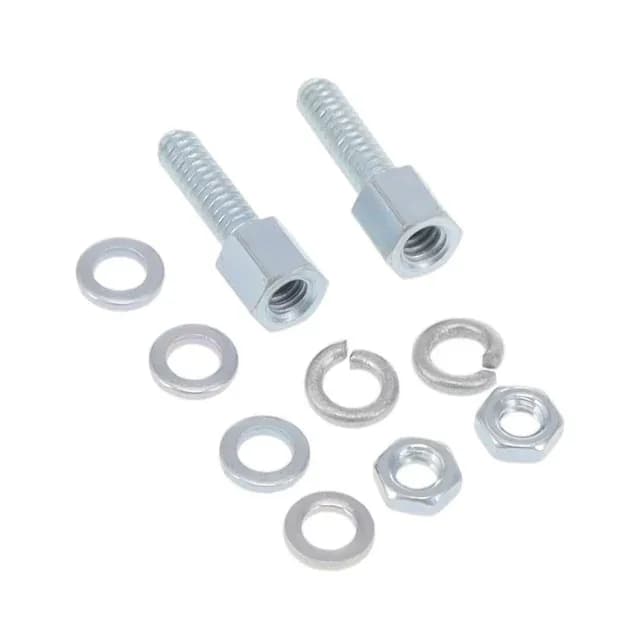

This jackscrew socket ships in a bag and includes the hardware — the socket itself plus the 4-40 screw and any washers needed for installation. That means one order code covers the full jackscrew assembly, not just the socket half. No separate hardware sourcing required.
