Molex 1731120059

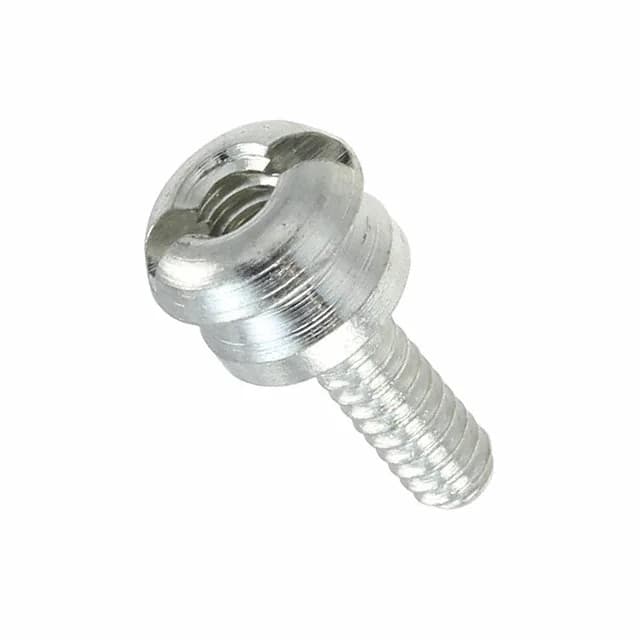

Molex 1731120059 Jackscrew Socket, 4-40 Thread

MPN 1731120059
Active

Molex FCT 1731120059 jackscrew socket, 4-40 UNC thread, 0.315" length below head, for D-sub backshells, bulk package.

$1.0800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSNot applicable
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1731120059 specifications
ParameterValue
Accessory typeJackscrew Socket
PackageBulk
Connector size4-40
Length - below head0.315\" (8.00mm)
For use with (Related products)D-Sub Backshell
Length - threaded portion below head0.315\" (8.00mm)

Product details

The Molex 1731120059 is a jackscrew socket from the FCT line, purpose-built for D-sub backshells. It carries a 4-40 UNC thread and a threaded portion below the head measuring 0.315" (8.00 mm) — the standard length that lets the screw engage the mating receptacle without bottoming out in a typical backshell cavity. This is the hardware that locks the cable-side backshell to the panel-mount D-sub, keeping the assembly tight under vibration and preventing the connector from backing off the mounting flange.

Thread Size and Fit — What 4-40 Means for Your Assembly

It matches the threaded inserts in the mating D-sub receptacle and the clearance holes in most metal or plastic backshells. The 0.315" threaded length below the head is enough to pass through a standard backshell wall and engage the receptacle threads by several full turns, giving a solid mechanical lock. If your backshell has a thicker wall or a recessed insert, check that the 0.315" projection still leaves enough thread engagement — it usually does for standard-density shells.
