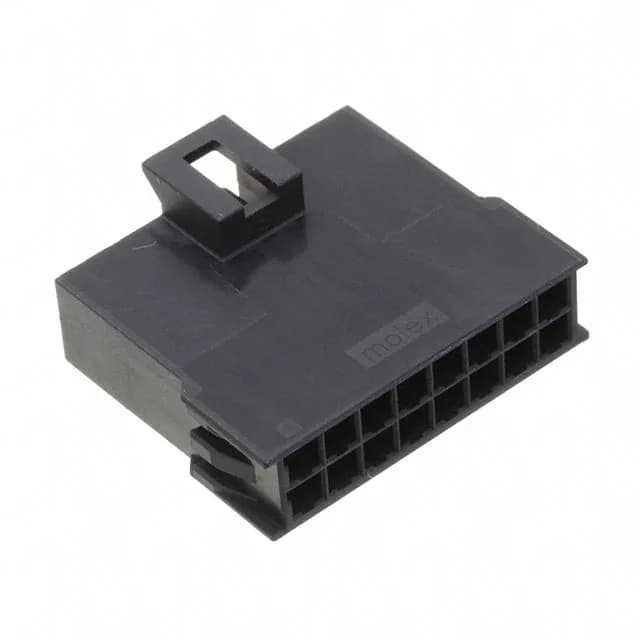

Molex, Nano-Fit 201444 series, plug housing, 16 positions, 2.50mm pitch, dual row, free-hanging, latch holder, glow-wire compliant PA66, black, bulk, contacts not included.
| Parameter | Value |
|---|---|
| Series | Nano-Fit 201444 |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.098\" (2.50mm) |
| Package | Bulk |
| Features | Glow Wire Compliant |
| Row spacing | 0.098\" (2.50mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 16 |
The 2014441116: This is a plug housing for the Nano-Fit 201444 system; it does not include contacts.
With 16 positions in two rows, this plug housing pairs with a 16-circuit Nano-Fit receptacle header.
No. The listing note states contacts are not included.
This plug housing mates with a 16-circuit, dual-row, 2.50mm pitch Nano-Fit receptacle header. Confirm the specific Molex receptacle part number for your application.
