Molex 2018431040

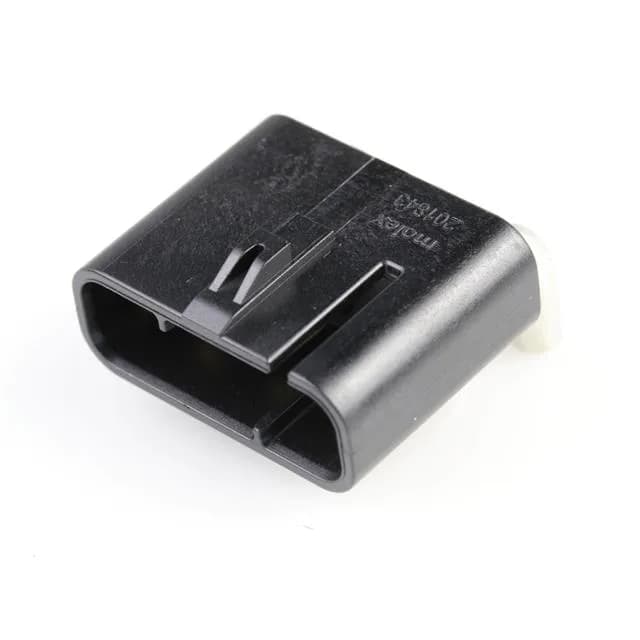

Molex 2018431040 MultiCat Header R/A 4POS 7.4mm

MPN 2018431040
Active

Molex MultiCat 201843 series, 2018431040, board-to-cable/wire header, 4 circuits, 7.40mm pitch, right-angle through-hole, shrouded with latch lock, gold-plated mating contacts, 1200V rating, -40°C to 150°C, UL94 V-0.

$22.1700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMultiCat 201843
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2018431040 key specifications
ParameterValue
SeriesMultiCat 201843
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Lock
Voltage rating1200V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 150°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.380\" (9.65mm)
Insulation materialPolyetherimide (PEI)

All specifications

2018431040 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAerospace, Automotive, Industrial, Medical
Contact shapeCircular
Rows1
Pitch0.291\" (7.40mm)
Positions4
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post196.9µin (5.00µm)
Contact finish thickness - mating3.90µin (0.099µm)

Product details

7.40mm pitch and 1200V — the clearance story

The 2018431040: The 0.291" (7.40mm) pitch on this single-row header is the mechanical enabler for the 1200V voltage rating — wide contact spacing prevents flashover between adjacent pins in high-potential circuits. This is not a dense signal connector; the pitch and voltage pair it for power distribution in aerospace, automotive, industrial, and medical equipment where isolation margins matter.

Right-angle through-hole and latch lock for vibration duty

The latch lock holds the mating half under shock and vibration — a requirement for automotive and industrial harnesses.

PEI insulation and 150°C ceiling

Polyetherimide (PEI) housing with UL94 V-0 flammability rating supports the -40°C to 150°C operating range — this header is specified for under-hood automotive, high-temp industrial cabinets, and medical sterilization cycles.
