Molex 2035551116 — Pin Headers, Sockets & Housings

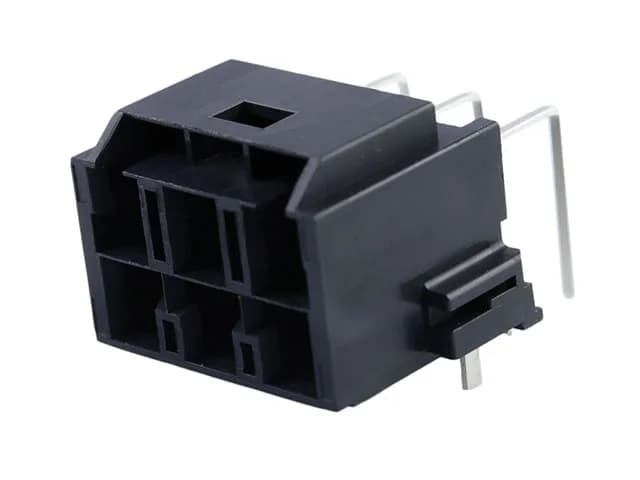

Molex CP-6.5 2035551116 Header, 6 Position, 11.8 A

MPN2035551116
Active

Molex CP-6.5 203555 Series Header, 6 Circuits, 2 Rows, 6.50 mm Pitch, 11.8 A, 600 VAC/DC, Through Hole, Right Angle, Tin Plating, UL94 V-0.

$2.9280Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

2035551116 key specifications
ParameterValue
SeriesCP-6.5 203555
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Voltage rating600VAC/DC
Current rating11.8A
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.598\" (15.19mm)
Insulation materialPolyamide (PA), Nylon

All specifications

2035551116 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesBoard Guide, Solder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeRectangular
Rows2
Pitch0.256\" (6.50mm)
Positions6
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingTin
Contact finish thickness - post50.0µin (1.27µm)
Contact finish thickness - mating50.0µin (1.27µm)

Product details

The Molex 2035551116 is a 6-circuit, dual-row header from the CP-6.5 203555 series, designed for board-to-wire power applications. It carries 11.8 A per circuit at a 6.50 mm pitch, with a 600 VAC/DC rating — the wide pitch gives enough creepage for that voltage without forcing an oversized board footprint.

The 11.8 A per circuit is a power-level rating, not a signal-level one — each contact carries enough current for a motor feed or a DC rail. The 6.50 mm pitch is wide enough to route the board traces between the through-hole pads without necking down the copper.

Frequently asked questions

What is the 2035551116 used for?

It is a board-to-wire power header for harness assemblies that need 11.8 A per circuit at 600 VAC/DC, typically in industrial control cabinets, power distribution, or equipment where the cable exits parallel to the PCB.
