Molex CP-6.5 203555 series, board-to-cable/wire header, 4 circuits, 0.256" (6.50 mm) pitch, through-hole right-angle, shrouded 4-wall, latch holder, tin-plated contacts, UL94 V-0, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | CP-6.5 203555 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.598\" (15.19mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Board Guide, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.256\" (6.50mm) |
| Positions | 4 |
| Row spacing - mating | 0.256\" (6.50mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |

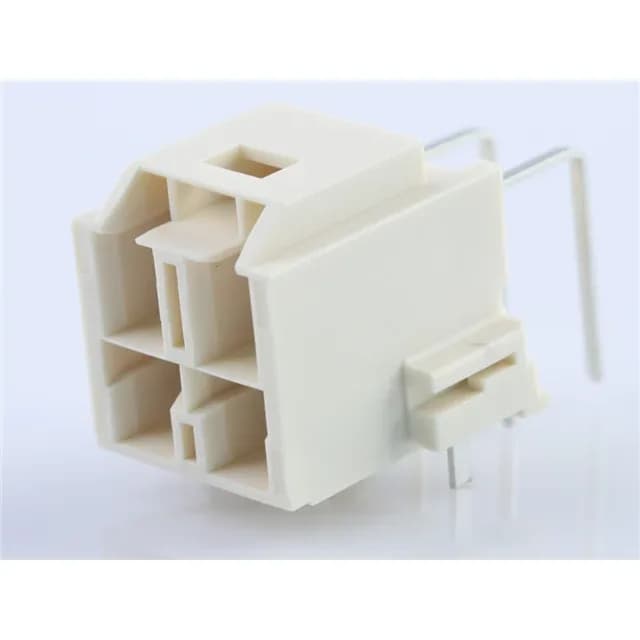

The 2035551214: This is a Molex CP-6.5 203555 series header, 4 positions loaded, 2 rows at 0.256" (6.50 mm) pitch — the same spacing as the mating receptacle row pitch.
The latch holder is the primary retention feature; the header does not include a secondary locking ramp. Mating housings in the CP-6.5 family use a corresponding latch feature.
This header mates with a CP-6.5 series receptacle housing that accepts the matching tab contacts. The latch holder on the header engages the receptacle's latch feature. Confirm the receptacle's row spacing matches the 0.256" (6.50 mm) row spacing of this header.
