Molex 2035551216 — Pin Headers

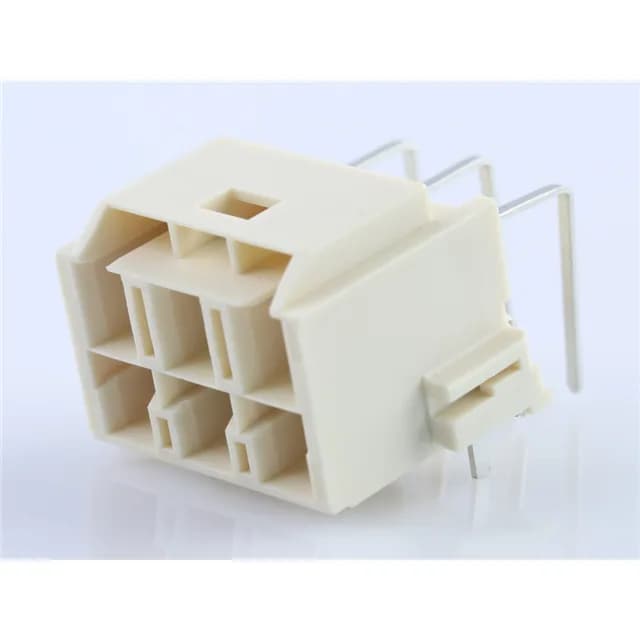

Molex 2035551216 CP-6.5 Header, 6 Pos, 6.5mm, R/A

MPN2035551216
Active

Molex CP-6.5 203555 series, Board to Cable/Wire header, 6 positions, 2 rows, 6.50mm pitch, Through Hole, Right Angle, shrouded 4-wall, latch holder, Tin mating finish, UL94 V-0, -40°C ~ 105°C, 600VAC/DC

$1.7700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCP-6.5 203555
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2035551216 key specifications
ParameterValue
SeriesCP-6.5 203555
TypeTab
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Voltage rating600VAC/DC
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.598\" (15.19mm)
Insulation materialPolyamide (PA), Nylon

All specifications

2035551216 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesBoard Guide, Solder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows2
Pitch0.256\" (6.50mm)
Positions6
Row spacing - mating0.256\" (6.50mm)
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingTin

Product details

What the 6.50mm pitch and right-angle orientation buy you

The 2035551216: This is a 6-position, 2-row header from the CP-6.5 203555 series, rated for general-purpose and industrial use. The shrouded 4-wall design protects the rectangular tab contacts from being bent during handling or blind mating.

Latch holder and board guide keep the pair mated

The latch holder (fastening type) locks the mating receptacle in place — critical in equipment that sees vibration from fans, motors, or transport. The current rating varies by wire gauge, so the limiting factor is the wire and terminal, not the header itself.

Frequently asked questions

What is the pitch of Molex 2035551216?

The mating pitch is 0.256" (6.50mm), same as the row spacing. This is the CP-6.5 series pitch — match it to the corresponding receptacle.

Is 2035551216 RoHS compliant?

Yes, it is ROHS3 compliant.

Does 2035551216 come in tape and reel packaging?

No, it ships in tube packaging.

What is the mounting type for 2035551216?

Through Hole, Right Angle — the pins go through the board and the header body sits at a right angle, so the cable exits parallel to the PCB.
