Molex 2042200010

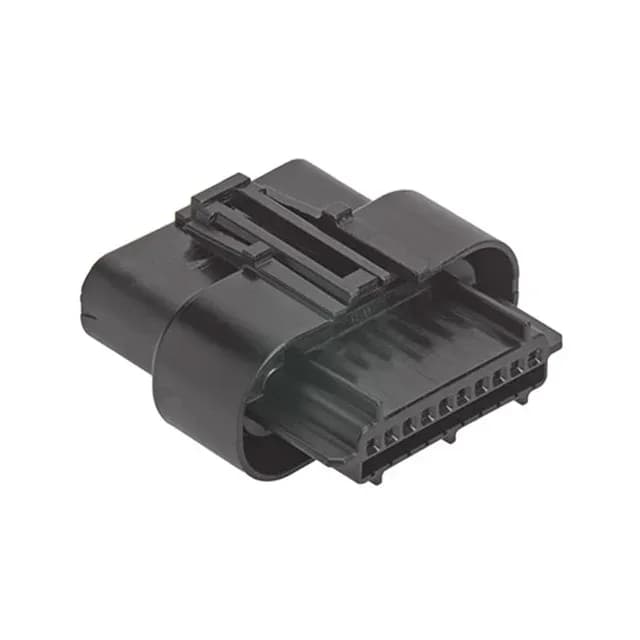

Molex 2042200010 Squba 1.8 Receptacle Housing, 10 Pos

MPN 2042200010
Active

Molex Squba 1.8 receptacle housing, 2042200010, 10 positions, 1.80mm pitch, single row, free-hanging, sealed, latch holder, crimp termination, contacts not included.

$2.9500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesSquba 1.8, 204220
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2042200010 specifications
ParameterValue
SeriesSquba 1.8, 204220
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.071\" (1.80mm)
PackageTray
FeaturesSealed
Rows1
Contact terminationCrimp
Positions10

Product details

Squba 1.8 Receptacle Housing for Sealed Wire-to-Board Harnesses

The Molex 2042200010 is a 10-circuit receptacle housing from the Squba 1.8 series, designed for sealed wire-to-board interconnect in environments where moisture or condensation is a concern.

Mating plug is the Squba 1.8 header (male pin) of the same 10-circuit count and 1.80 mm pitch; the latch holder on the receptacle engages the header's locking ramp. No secondary terminal position assurance (TPA) is listed for this housing — the primary latch and the crimp terminal's own retention lance carry the wire retention load.

The housing is marked as sealed, which means the mated assembly with the correct header and gasket (if applicable) can withstand splash, washdown, and condensation typical of under-hood automotive, outdoor industrial controls, and agricultural equipment.
