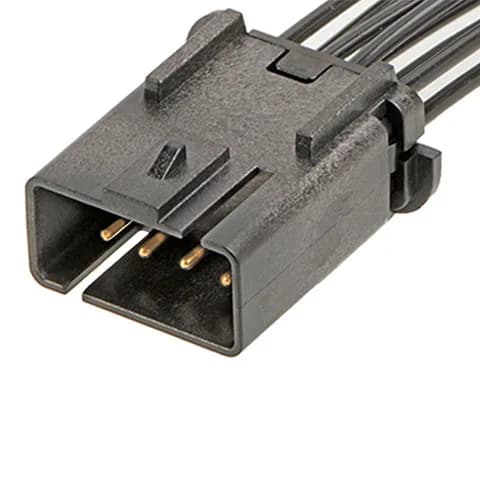

The Molex 2059250010 is an 8-position, dual-row plug housing from the MultiCat 205925 series. It is a free-hanging (in-line) crimp housing designed to accept male pin contacts — the contacts are not included and must be ordered separately. The 3.60mm pitch and matching 3.60mm row spacing give it a square grid that pairs with the MultiCat receptacle housing for a wire-to-wire or wire-to-board interconnect. The locking ramp provides a positive, audible latch that holds the mated pair together under vibration, making it a better fit than a simple friction-lock housing for automotive, industrial, and outdoor equipment where the connector sees shock or cable pull.
The black polyetherimide (PEI) insulation material handles that temperature window without softening — PEI is a high-heat thermoplastic, not the standard nylon you see on lower-cost housings. The 3.60mm pitch and row spacing give enough creepage for the voltage rating of the MultiCat system (typically 600V, though the housing itself does not carry a voltage spec — the mated connector system does). The locking ramp is the feature that matters most for field reliability: it engages with the matching ramp on the receptacle and requires a deliberate squeeze to release, so a cable tug or machine vibration won't unseat it.
Mating and Termination Checklist
This plug housing mates with the MultiCat receptacle housing (order code 205926 series). The male pin contacts are crimped onto the wire and then inserted into the housing cavities — the housing has a secondary lock (terminal position assurance, or TPA) that must be engaged after contact insertion to confirm full seating. Use the Molex crimp tool for the designated wire gauge (typically 14-20 AWG for the MultiCat system, but confirm with the contact datasheet). The free-hanging mount means no panel cutout or PCB footprint is needed — the connector floats on the wire harness and is secured by the locking ramp alone.
