Molex 2068320401

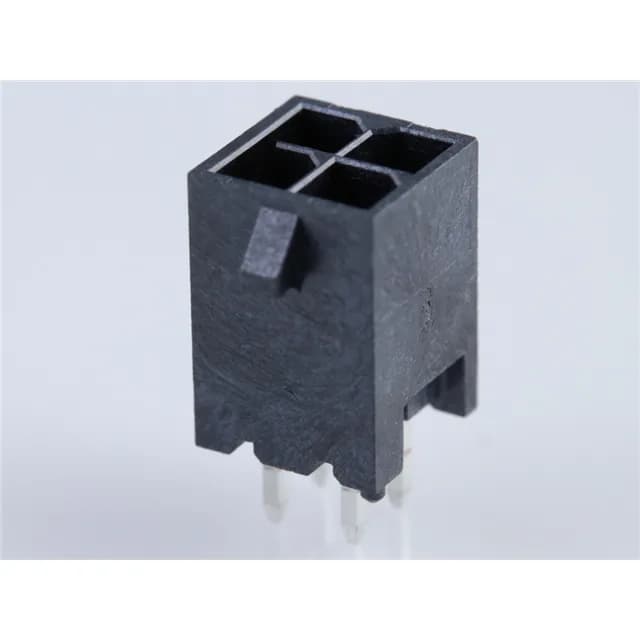

Molex 2068320401 Micro-Fit+ Header 4 Pos 3mm Locking Ramp

MPN 2068320401
Active

Molex Micro-Fit+ 206832, Board to Cable/Wire header, 4 circuits, 2 rows, 0.118" (3.00mm) pitch, shrouded 4-wall, locking ramp, through-hole solder, 12.5A per contact, 600VAC/DC, -40°C ~ 105°C, UL94 V-0, Glow Wire Compliant, Tray.

$1.3800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMicro-Fit+ 206832
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2068320401 key specifications
ParameterValue
SeriesMicro-Fit+ 206832
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC/DC
Current rating12.5A per Contact
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.390\" (9.91mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

2068320401 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide, Glow Wire Compliant
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions4
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Contact finish - matingTin

Product details

Board-to-wire header for power and signal in tight spaces

The 2068320401: Its 3.00mm pitch and 12.5A per contact rating make it a compact power interconnect for automotive, medical, and telecom equipment.

Current rating and thermal limits for power circuits

Rated 12.5A per contact, this header handles substantial current for its 3.00mm pitch. The LCP housing with UL94 V-0 flammability rating and Glow Wire Compliant feature supports safety-critical applications in appliances and lighting.
