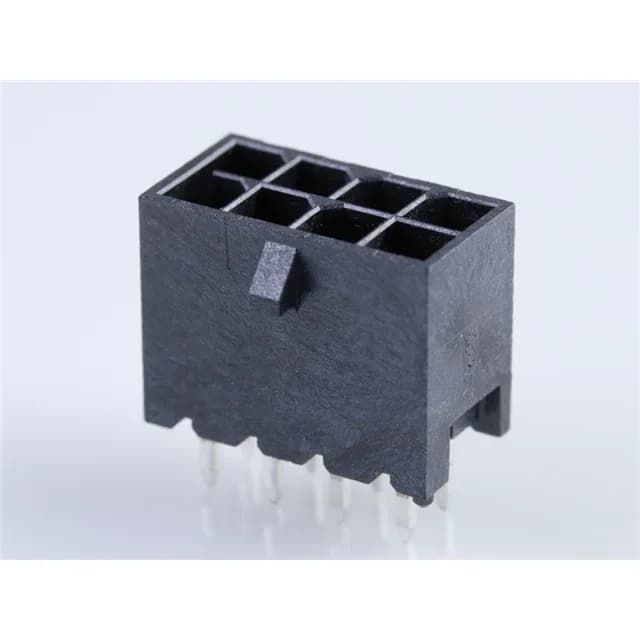

Molex Micro-Fit+ 206832, Board to Cable/Wire header, 8 circuits, 2 rows, 3.00mm pitch, shrouded 4-wall, locking ramp, through-hole solder, 12.5A per contact, 600VAC/DC, -40°C to 105°C, UL94 V-0, ROHS3, tray.
| Parameter | Value |
|---|---|
| Series | Micro-Fit+ 206832 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC/DC |
| Current rating | 12.5A per Contact |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
Rated 12.5A per contact at 600VAC/DC, this header handles power distribution in automotive, medical, telecommunications, and general-purpose equipment where a compact 3mm pitch is needed without derating current.
Glow wire compliant and includes a board guide feature for automated pick-and-place alignment during assembly.
Mates with Molex Micro-Fit+ 206430 series receptacle housings and 206434 crimp terminals (20-24 AWG).
Submit your BOM quantity for current pricing and lead time confirmation.
Mates with Micro-Fit+ 206430 series receptacle housings and 206434 crimp terminals. The locking ramp on the header engages with the receptacle latch.
Yes, a locking ramp on the shroud provides positive mechanical retention with the mating receptacle.
Yes, listed as glow wire compliant, suitable for appliance and automotive interior applications requiring IEC 60335-1 compliance.
