Molex 2074200081

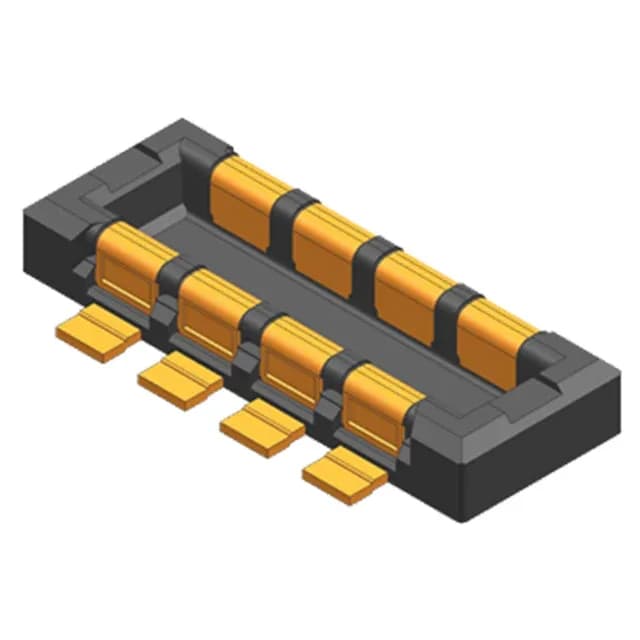

Molex SlimStack 2074200081, 0.80mm Pitch, 8-Pos Plug

MPN 2074200081
Active

Molex SlimStack 207420 series, 2074200081, 0.80mm pitch plug, 8 positions (4 + 4 power), 2 rows, 0.8mm stacking height, SMT, gold contacts, solder retention.

$0.7400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesSlimStack 207420
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2074200081 specifications
ParameterValue
SeriesSlimStack 207420
MountingSurface Mount
Connector typePlug, Outer Shroud Contacts
Height above board0.025\" (0.63mm)
Mated stacking heights0.8mm
Pitch0.031\" (0.80mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions8 (4 + 4 Power)
Contact finish thickness4.00µin (0.100µm)

Product details

Board-to-Board Mezzanine Plug for Tight Stack Heights

The Molex 2074200081 is an 8-position plug from the SlimStack 207420 series, designed for board-to-board mezzanine stacking at a mated height of 0.8 mm. The 0.031" (0.80 mm) pitch keeps the footprint compact, while the dual-row arrangement with 4 signal and 4 power contacts handles mixed-duty interconnects where a single connector carries both logic and low-current power. The plug mates with the matching SlimStack receptacle (same series) to form the complete mezzanine pair.

Position Count and Power-Signal Split

The 8 positions are split 4 + 4 power, meaning four contacts are dedicated to current-carrying duty and four to signal. This is a deliberate layout for applications that need a local power rail routed through the mezzanine interface without a separate power connector. The gold contact finish (4.00 µin) on all positions keeps contact resistance low across both signal and power paths, though the light flash limits the connector to moderate mating cycle counts — typical for a one-time board-stack assembly rather than repeated field disconnects.

SMT Mounting with Solder Retention

This is a practical detail for a mezzanine plug that sees lateral loads during board separation or handling. The Tape & Reel packaging (Cut Tape option) suits automated pick-and-place lines.

MPN
2074200081
