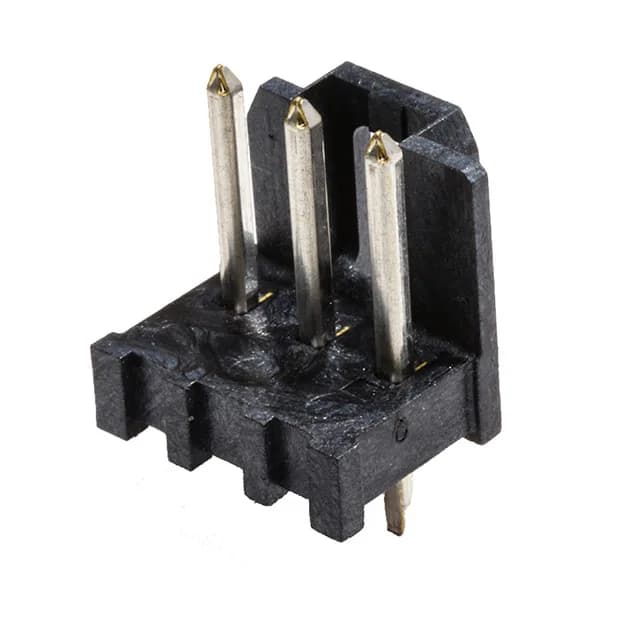

Molex L1NK 396 207478 series, Board to Cable/Wire header, 3.96mm pitch, 3 positions, single row, through hole, shrouded with latch holder, glow wire compliant, tin contacts.
| Parameter | Value |
|---|---|
| Series | L1NK 396 207478 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 350V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass Alloy |
| Insulation color | Black |
| Insulation height | 0.476\" (12.10mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Glow Wire Compliant |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Overall contact length | 0.693\" (17.60mm) |
| Contact finish - mating | Tin |
The 3.96mm spacing is wide enough to route traces between pads on a single-layer board without neck-downs. The single-wall shrouding and latch holder provide keyed alignment and positive retention against vibration — the latch clicks when fully mated.
Shipped in tray packaging. No reel option, so plan for manual or tube-fed placement if running automated assembly.
Request a quote for current pricing and lead time — no stock-holding claim on this page.
The mating pitch is 0.156" (3.96mm).
Yes, the part is listed as glow wire compliant.
This is a male pin header — it mates with a female housing from the same L1NK 396 series (3.96mm pitch, crimp terminals). Confirm the circuit count and keying match your receptacle.
