Three-piece kit: header, housing, terminal

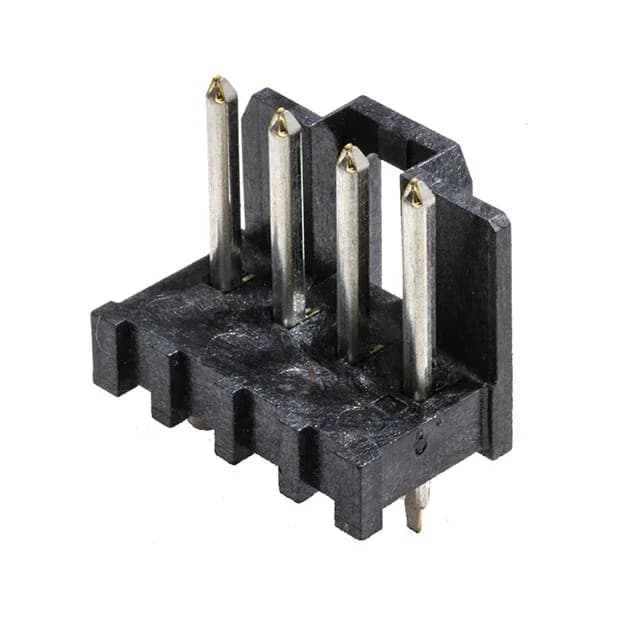

The 2074780004: This is the board-mounted half of a wire-to-board connection — the header that mates with a Molex L1NK 396 receptacle housing and a matching crimp terminal. The 0.156" (3.96mm) pitch and single-row 4-position layout are the footprint anchor for the PCB layout.
Glow wire and flammability for safety-rated equipment
Glow Wire Compliant per IEC 60335-1, with a UL94 V-0 rated LCP housing. This combination is specified for appliances, industrial controls, and telecom equipment where a glowing-wire fault must not propagate flame.
Mates with a Molex L1NK 396 receptacle housing (same series base 207478). The header's tin-plated square pins accept the receptacle's crimp terminals; wire gauge determines the current rating per contact.
