Molex 2074780005

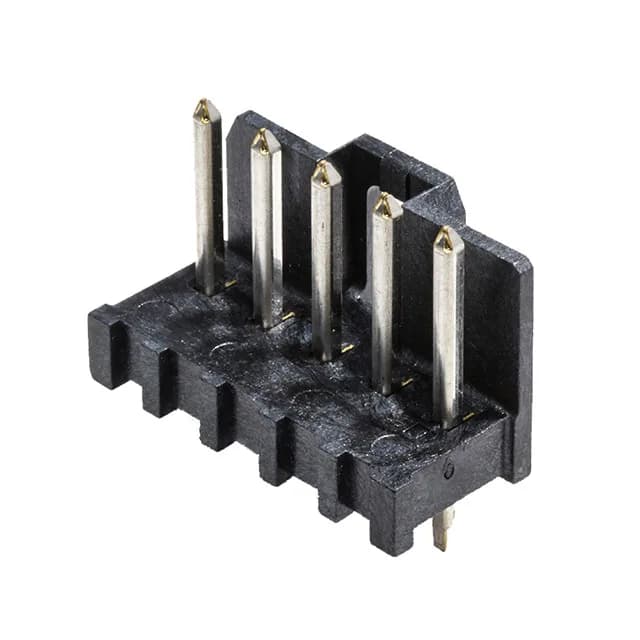

2074780005 Molex L1NK 396 Header 5 Pos 3.96mm

MPN 2074780005
Active

Molex L1NK 396 2074780005, Board to Cable/Wire header, 5 circuits, 3.96mm pitch, through-hole solder termination, shrouded 1 wall, tin-plated contacts, UL94 V-0 LCP housing.

$0.6300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesL1NK 396 207478
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2074780005 key specifications
ParameterValue
SeriesL1NK 396 207478
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating350V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass Alloy
Insulation colorBlack
Insulation height0.476\" (12.10mm)
Insulation materialLiquid Crystal Polymer (LCP)

All specifications

2074780005 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesGlow Wire Compliant
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions5
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Overall contact length0.693\" (17.60mm)
Contact finish - matingTin

Product details

3.96mm pitch, 5-position header for wire-to-board

The 2074780005 is a 5-position, single-row header from the Molex L1NK 396 series, with a 3.96mm pitch that matches standard crimp housings for wire-to-board applications. It is a through-hole, vertical-mount header with a shrouded 1-wall design, which provides basic keying and prevents mismating with non-shrouded receptacles.

Current rating depends on wire gauge selection

For a given application, derate based on the actual wire size and ambient temperature.

The part is ROHS3 compliant and ships in tray packaging.
