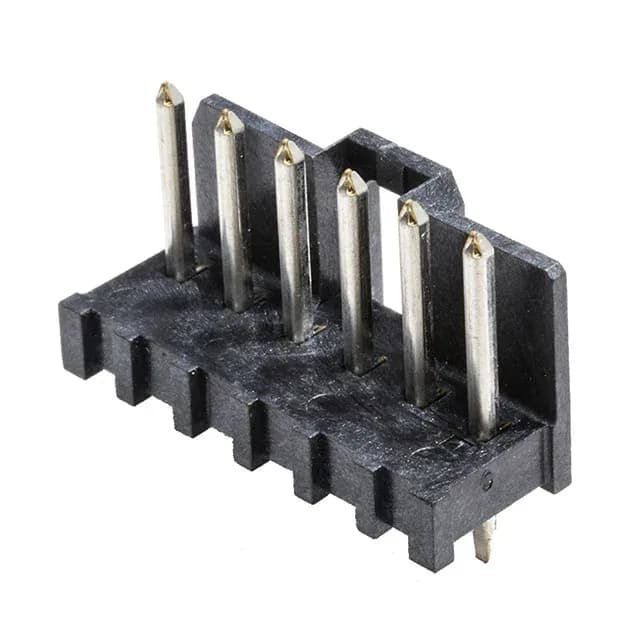

Molex L1NK 396 207478 series, Board to Cable/Wire header, 6 circuits, 0.156" (3.96mm) pitch, single row, shrouded with latch holder, through-hole solder, tin-plated contacts, UL94 V-0 LCP housing, glow wire compliant, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | L1NK 396 207478 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 350V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass Alloy |
| Insulation color | Black |
| Insulation height | 0.476\" (12.10mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Glow Wire Compliant |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Overall contact length | 0.693\" (17.60mm) |
| Contact finish - mating | Tin |
The latch holder secures the mating connector against vibration — a real advantage in automotive and industrial enclosures where a loose connection means a service call.
At 3.96mm pitch, this header gives you more room per circuit than a 2.54mm header — useful when routing wider traces or higher-current paths on the PCB. The 6 positions are all loaded, so no empty spots to confuse a harness builder. The through-hole termination with a 0.138" (3.50mm) post length suits standard 1.6mm-thick PCBs.
The latch holder adds vibration resistance. Confirm the mating receptacle and wire gauge match your harness spec.
