Molex 2082982021 — Connector Housings

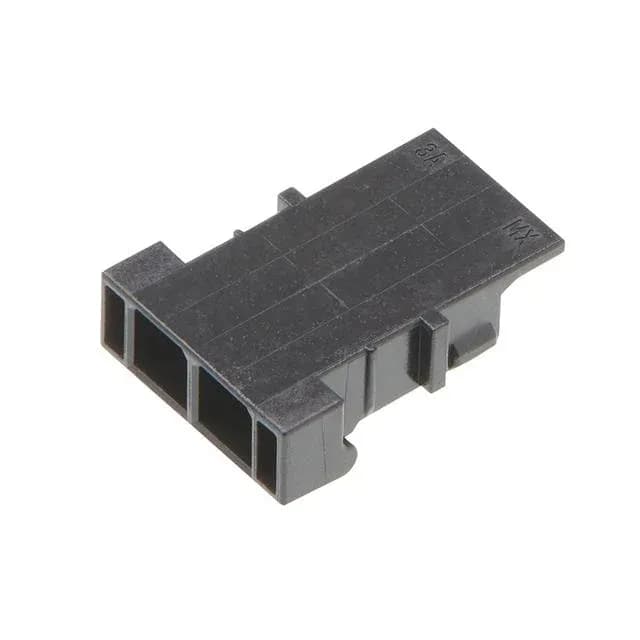

Molex 2082982021 Pico-EZmate Receptacle, 2-Position

MPN2082982021
Active

Molex Pico-EZmate 208298 series receptacle, 2082982021, 2 positions, 1.80mm pitch, 1 row, female socket, crimp termination, free-hanging, push-pull fastening, black, -40°C to 105°C.

$0.7500Ref. price · indicative, final on quote
Molex 2082982021 datasheet (PDF)
RoHSROHS3 Compliant
SeriesPico-EZmate 208298
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2082982021 specifications
ParameterValue
SeriesPico-EZmate 208298
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typePush-Pull
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA), Nylon
Pitch0.071\" (1.80mm)
PackageBag
Rows1
Contact terminationCrimp
Positions2

Product details

Two circuits at 1.80 mm pitch — the smallest Pico-EZmate receptacle for tight wire-to-board runs

The free-hanging, in-line housing mates with the corresponding Pico-EZmate header; the push-pull fastening gives a positive tactile lock without tools.

What the 1.80 mm pitch and 2-position count mean for the build

At this pitch, the current per circuit is typically limited by the contact beam and wire gauge, not the housing.

Crimp termination and free-hanging installation

The push-pull latch locks the mated pair; disconnection is a straight pull against the latch, no tool required.

Frequently asked questions

What is the pitch of Molex 2082982021?

The pitch is 0.071" (1.80 mm), which sets the pad spacing on the PCB for the mating header.

How many contacts does 2082982021 have?

It has 2 positions in a single row.

Is Molex 2082982021 RoHS compliant?

Yes, it is ROHS3 compliant.

What is the mating part for Molex 2082982021?

It mates with the corresponding Pico-EZmate header from the same 208298 series. The exact header order code depends on the circuit count and mounting style needed.
