Molex 2128720002

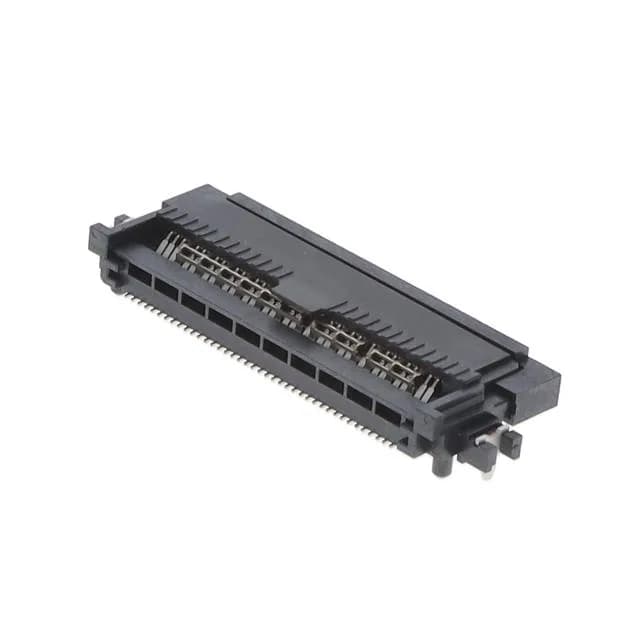

Molex 2128720002 SAS/PCIe Receptacle, 68 Pos

MPN 2128720002
Active

Molex Series 212872 SAS/PCIe receptacle, 68 positions, SMT right-angle, gold 30.0µin contact finish, board guide and EMI shield.

$12.5400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

2128720002 specifications
ParameterValue
Series212872
MountingSurface Mount, Right Angle
Connector typeReceptacle
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide, EMI Shielded
TerminationSolder
Contact finishGold
Positions68
Contact finish thickness30.0µin (0.76µm)

Product details

What this connector does in the assembly

The Molex 2128720002 is a 68-position SAS/PCIe receptacle from the Series 212872 line. It's a surface-mount, right-angle connector designed to carry high-speed serial data between a backplane or midplane and a storage controller or PCIe add-in card. The 68 positions match the standard SAS-3 / PCIe 3.0 connector footprint — you'll find this on enterprise server backplanes, storage arrays, and RAID controllers where the signal path needs controlled impedance and the board layout calls for a right-angle exit. The integrated EMI shield and board guide are built into the shell, so you don't need a separate metal cage or alignment pins; the shield bleeds common-mode noise before it reaches the signal pins, and the guide takes the shear load during blind mating into a backplane.

Board layout and mounting

That orientation is standard for mezzanine-style card-to-backplane interconnects where the daughter card plugs in at a right angle to the main board. The SMT tails reflow with the rest of the passive components — no separate wave-solder step — but the pad footprint needs to match the 68-position SAS/PCIe land pattern exactly; the datasheet drawing shows the keep-out zone for the shield's ground tabs.
