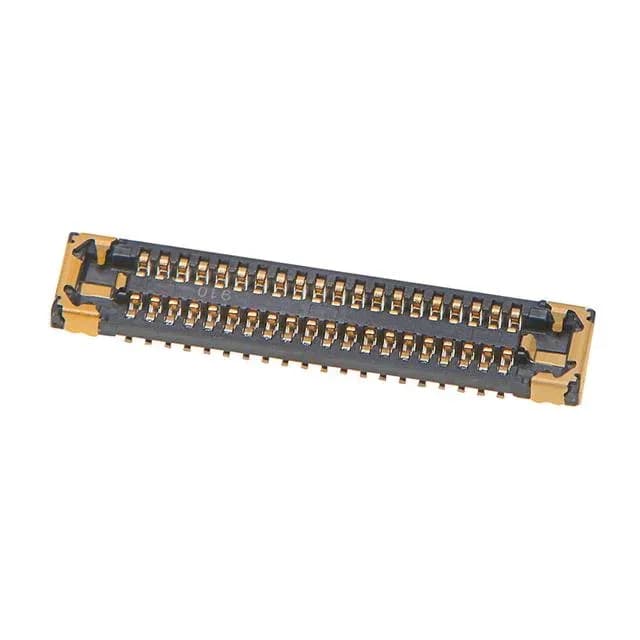

Molex SlimStack 216700 series, 2167000509, plug center strip contacts, 50 positions, 2 rows, 0.014" (0.35 mm) pitch, surface mount, gold contact finish, 0.022" (0.57 mm) height above board, solder retention.
| Parameter | Value |
|---|---|
| Series | SlimStack 216700 |
| Mounting | Surface Mount |
| Connector type | Plug, Center Strip Contacts |
| Height above board | 0.022\" (0.57mm) |
| Mated stacking heights | 0.6mm |
| Pitch | 0.014\" (0.35mm) |
| Package | Cut Tape (CT) Bulk |
| Features | Solder Retention |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 50 |
| Contact finish thickness | 3.94µin (0.100µm) |
The Molex 2167000509 is a 50-position plug from the SlimStack 216700 series, designed as a board-to-board mezzanine interconnect. It uses a 0.014" (0.35 mm) pitch and two rows of center strip contacts, with a mated stack height of 0.6 mm.
The 0.35 mm pitch demands careful PCB trace routing.
Yes, 2167000509 is ROHS3 compliant per the manufacturer listing.
2167000509 is a plug with center strip contacts; it mates with the matching SlimStack 216700 receptacle of the same 50-position count and 0.35 mm pitch. The mated stack height is 0.6 mm.
