Molex 2169900003

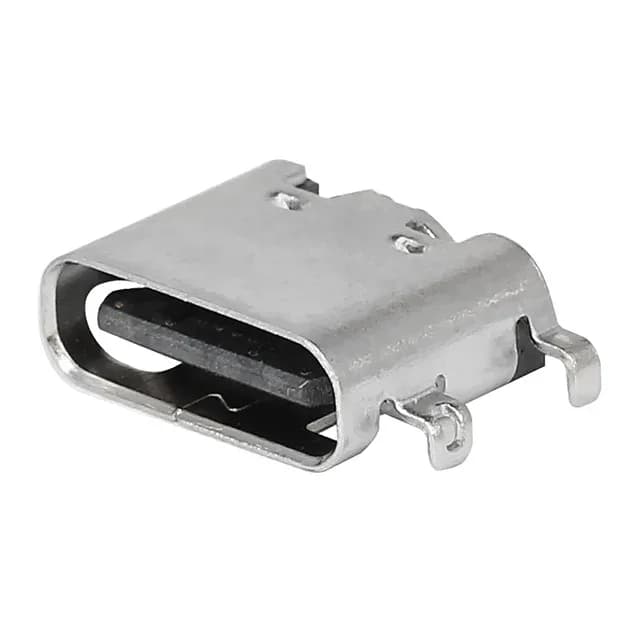

Molex 2169900003 USB-C Receptacle, 24P SMD RA, Active

MPN 2169900003
Active

Molex 216990 series USB-C (USB Type-C) receptacle, 24 contacts (16+8 dummy), USB 2.0, surface-mount right-angle, gold-plated contacts, rated 0.25A/1.25A/5A, 30VAC/DC, 10000 mating cycles.

$0.9000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Series216990
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2169900003 specifications
ParameterValue
Series216990
MountingSurface Mount, Right Angle; Through Hole
Connector typeUSB-C (USB TYPE-C)
Voltage - rated30VAC/DC
Current rating0.25A, 1.25A, 5A
Positions24 (16+8 Dummy)
Mounting featureHorizontal, Mid Mount
Operating temperature-40°C ~ 85°C
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR) Cut Tape (CT)
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

The Molex 2169900003 is a USB Type-C receptacle from the 216990 series, designed for board-edge or mid-mount applications where a reversible, high-durability USB 2.0 interface is needed. It carries the full 24-contact complement (16 signal contacts plus 8 dummy contacts for mechanical stability and ground), all gold-plated for corrosion resistance over repeated matings. Rated current splits across the contact groups: 0.25 A on the signal pins, 1.25 A on the sideband/CC pins, and 5 A on the VBUS and GND contacts — enough for standard device charging and data sync. The 30 VAC/DC voltage rating covers typical USB power delivery profiles.

This receptacle uses a surface-mount, right-angle termination with additional through-hole anchor pins for mechanical retention. The steel/stainless shell provides EMI shielding and is soldered to ground pads on the PCB. The 10000-cycle mating life rating means this connector is suited for test equipment, docking stations, or any application where the cable is plugged and unplugged daily.

MPN
2169900003
