Molex 2188770064

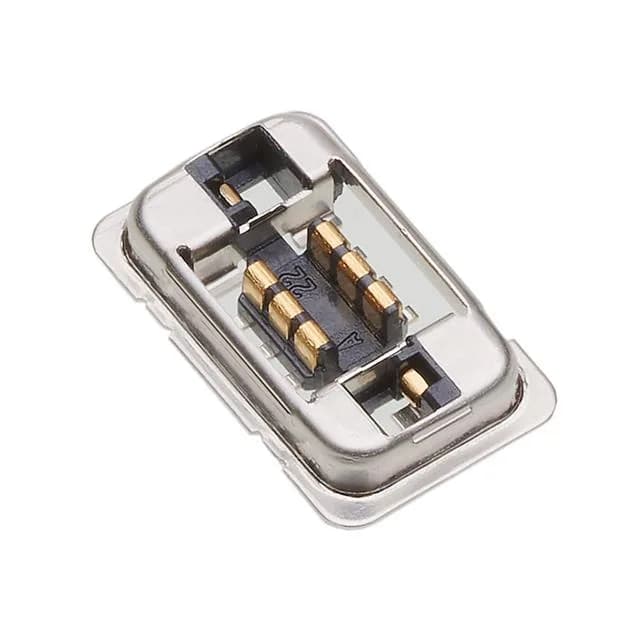

Molex 5G25 2188770064, 0.35mm Pitch, 6-Position Plug

MPN 2188770064
Active

Molex 5G25 series, Plug Outer Shroud Contacts, 2188770064, 6 positions, 2 rows, 0.014" (0.35mm) pitch, Surface Mount, Gold contact finish, 0.033" (0.84mm) height above board, 0.7mm mated stacking height.

$3.0300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Series5G25
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2188770064 specifications
ParameterValue
Series5G25
MountingSurface Mount
Connector typePlug, Outer Shroud Contacts
Height above board0.033\" (0.84mm)
Mated stacking heights0.7mm
Pitch0.014\" (0.35mm)
PackageTape & Reel (TR) Cut Tape (CT)
Contact finishGold
Rows2
Positions6

Product details

0.35 mm Pitch Board-to-Board Plug for Dense Stacking

The Molex 2188770064 is a 6-position plug from the 5G25 series, designed for high-density board-to-board interconnects where vertical space is tight. The 0.35 mm pitch allows routing between closely spaced pads, and the 0.7 mm mated stacking height keeps the overall assembly thin — suited for compact handheld or embedded designs where every millimeter of z-height is allocated. Gold-plated contacts on both rows resist corrosion and maintain signal integrity across repeated mating cycles.

Surface Mount Assembly and Footprint

This plug is surface-mount only, with outer shroud contacts that self-align during reflow. The 0.84 mm height above board leaves clearance under the component for trace routing on inner layers. Tape & Reel packaging supports automated pick-and-place for volume assembly.
