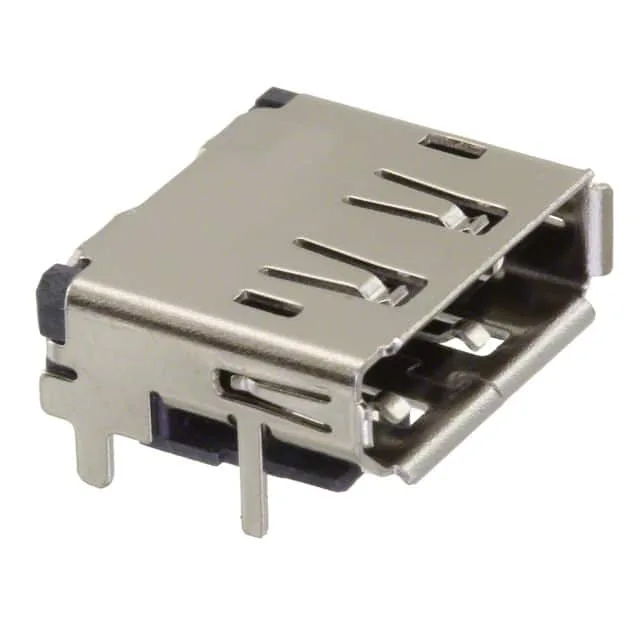

Molex 472720001 DisplayPort Receptacle, 20P SMD RA, Shielded

MPN472720001
Active

Molex 47272 series DisplayPort receptacle, 20 contacts, surface mount right-angle, shielded, gold contact finish, 0.5A per contact, 40VAC rating, 10,000 mating cycles.

$6.19Ref. price · indicative, final on quote
472720001 datasheet
StockIn Stock (28)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

472720001 Technical Specifications
ParameterValue
Series47272
Mounting typeSurface Mount, Right Angle; Through Hole
Connector typeDisplayPort
Voltage - rated40VAC
Current rating0.5A
Positions20
Mounting featureHorizontal
Operating temperature-20°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Guide, Latch Lock
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
Number of ports1

Product details

20-Position Shielded DisplayPort Receptacle for Edge-Mount PCB Integration

The Molex 472720001 is a 20-contact DisplayPort receptacle from the 47272 series, designed for surface-mount right-angle PCB mounting. It accepts a standard DisplayPort plug and routes the video signal horizontally off the board edge. The shielded shell — steel and stainless — contains the high-speed differential pairs within the interface, keeping radiated emissions under control in a system enclosure. Gold-plated contacts handle 0.5A per circuit at 40VAC, which is the signal-level current typical for DisplayPort lanes — not a power-delivery connector. The 10,000-cycle mating life is well above the 5,000-cycle norm for consumer-grade video ports, so this receptacle suits equipment that sees frequent cable swaps: test fixtures, panel-mount displays on industrial gear, or rack-mount video distribution units.

Frequently asked questions

Where can I buy the 472720001 DisplayPort receptacle?

Submit a request for current pricing and availability — confirmed at quote time.

Is the 472720001 compatible with standard DisplayPort cables?

Yes — this is a standard 20-position DisplayPort receptacle. Any DisplayPort plug with the full-size interface mates with it. The latch lock on the receptacle engages the plug's latch for secure retention.

What is the mating cycle rating of the 472720001?

Rated for 10,000 mating cycles — significantly higher than typical consumer DisplayPort connectors, which are often rated around 5,000 cycles. This makes it a good fit for applications requiring frequent cable changes.
