Molex 475891001

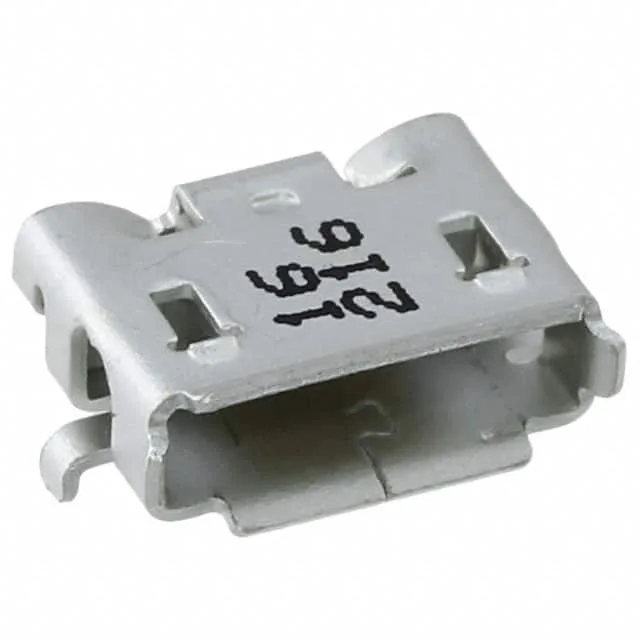

Molex 475891001 Micro USB AB Receptacle, 10K Cycles

MPN 475891001
Active

Molex 47589 series micro USB AB receptacle, 5 contacts, surface mount right-angle, shielded, gold-plated contacts, 1A / 1.8A rated, 30VAC, 10,000 mating cycles.

$1.13 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Series47589
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

475891001 key specifications
ParameterValue
Series47589
MountingSurface Mount, Right Angle; Through Hole
Connector typeUSB - micro AB
Voltage - rated30VAC
Current rating1A, 1.8A
Positions5
Mounting featureHorizontal
Operating temperature-35°C ~ 85°C
Insulation colorGray
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle

All specifications

475891001 additional specifications
ParameterValue
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesPick and Place, Solder Retention
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
Number of ports1

Product details

Micro USB AB Receptacle — 5 Contacts, Shielded, 10,000-Cycle Duty

The Molex 475891001 is a micro USB AB receptacle from the 47589 series, designed for applications that need to accept either micro USB A or B plugs — the AB configuration handles both host and device connections in a single port. It carries 5 contacts in a single port, rated 1A and 1.8A at 30VAC, with gold-plated contacts that support the 10,000 mating cycle rating. The shell is shielded with steel and stainless steel, giving the EMI containment needed for USB 2.0 signal integrity in compact enclosures.

Mounting and Assembly Fit

This receptacle mounts surface-mount right-angle, with the connector body sitting horizontal to the PCB edge — the typical orientation for a board-edge USB port. The mounting feature is listed as horizontal, confirming the USB opening faces the board edge. The termination is solder only — no press-fit option here.

Shielding and USB Compatibility

The shielded construction (steel and stainless steel) means this connector is built for USB 2.0 data rates — the micro AB form factor is electrically compatible with USB 2.0 signaling. It is not rated for USB 3.0 SuperSpeed, which requires additional differential pairs the 5-contact micro AB footprint does not carry. The key difference between micro USB AB and micro USB B is that the AB receptacle accepts both A and B plugs, while a B receptacle only accepts a B plug. This makes the AB variant the right choice for On-The-Go (OTG) designs where the device needs to switch between host and peripheral roles.

MPN
475891001
