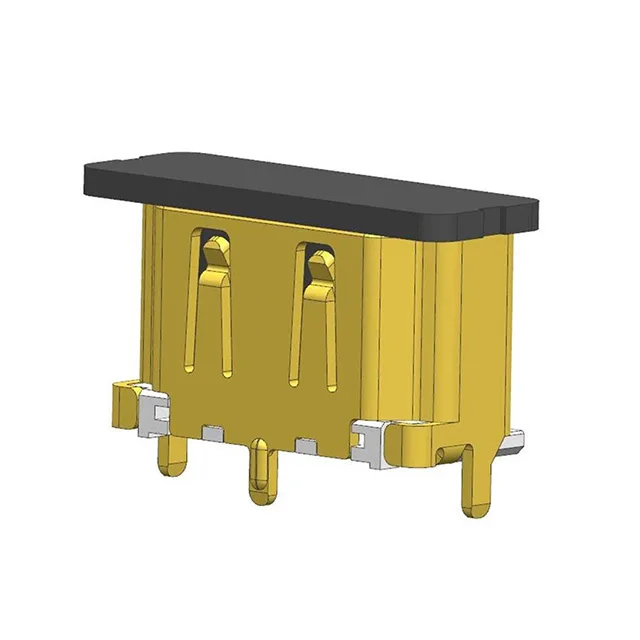

Molex 476591102 HDMI Receptacle, 19 Contacts, Vertical SMT

MPN 476591102
Active

Molex 47659 series HDMI receptacle, 19 contacts, vertical SMT, shielded, gold-plated contacts, 0.5A per contact, 40VDC, 10,000 mating cycles.

$2.67 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Series47659
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

476591102 specifications
ParameterValue
Series47659
MountingSurface Mount, Through Hole
Connector typeHDMI
Voltage - rated40VDC
Current rating0.5A per Contact
Positions19
Mounting featureVertical
Operating temperature-20°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Brass Alloy
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Guide, Pick and Place
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
Number of ports1

Product details

HDMI Receptacle, 19 Contacts, Vertical SMT — 10,000 Mating Cycles

The Molex 476591102 is a 19-contact HDMI receptacle from the 47659 series, designed for vertical surface-mount assembly on a PCB. It carries a full metal shield for EMI containment — standard for HDMI signal paths — and gold-plated contacts rated at 0.5 A per contact. The 10,000-cycle mating life is well above the typical consumer HDMI jack (often 5,000 cycles), making this a candidate for equipment that sees repeated cable swaps: test fixtures, panel-mount display ports, or industrial HMI panels where the cable gets unplugged daily.

The shielded shell (brass alloy) mates with the cable-side HDMI plug's outer contact to create a continuous ground plane around the differential pairs. This is not optional for HDMI compliance above 1080p — without the shield, the radiated emissions and common-mode noise from the TMDS clock lines will fail an FCC pre-scan. The vertical orientation keeps the signal path short to the PCB traces, which helps maintain the 100-ohm differential impedance through the connector.

Mounting and Assembly

Listed for both Surface Mount and Through Hole mounting, but the vertical orientation and SMT pads are the primary fit. The board guide and pick-and-place features tell you this was designed for automated assembly — the pick-and-place pad gives the nozzle a flat target, and the board guide aligns the connector during reflow so the shield tabs don't skew. The through-hole option likely refers to the shield anchor legs that get soldered into plated through-holes for mechanical retention, not the signal contacts.
