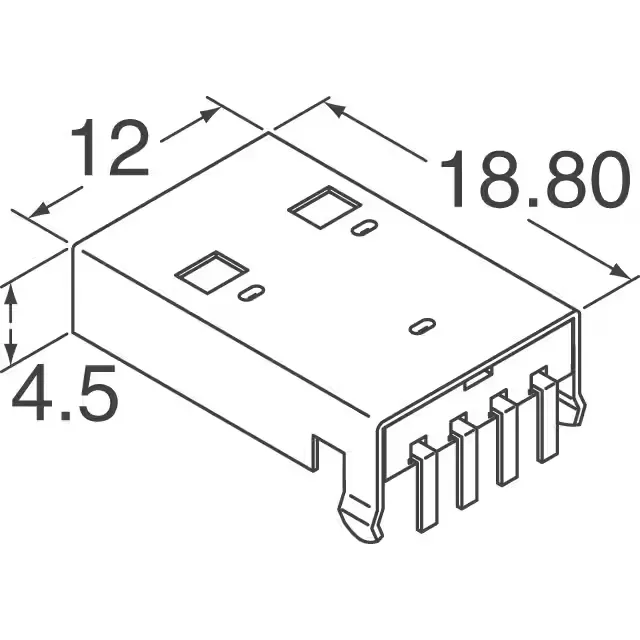

480370001 — Molex product photo
Molex

Molex 480370001 USB-A Plug, 4 Pos, 1.5A, R/A

MPN480370001
Active

Molex 48037 series USB 2.0 Type-A plug, 4 contacts, 1.5 A, shielded, through-hole right-angle, gold-plated contacts, UL94 V-0.

$1.43Ref. price · indicative, final on quote
480370001 datasheet
StockIn Stock (14)
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

480370001 Technical Specifications
ParameterValue
Series48037
Mounting typeThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated150VAC
Current rating1.5A
Positions4
Mounting featureHorizontal
Operating temperature-20°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Steel (SPCC)
Material flammability ratingUL94 V-0
GenderPlug
PackageTray
ShieldingShielded
TerminationSolder
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB 2.0 Type-A Plug for Board-Edge Mounting

This is the plug (male) half of the USB-A interconnect — it mates with a standard USB-A receptacle. The 4 contacts carry the USB 2.0 signal pair plus VBUS and ground, with each contact rated at 1.5 A. The steel shell provides the required EMI shielding for the USB 2.0 data rate.

The steel (SPCC) shield has solder tabs that anchor to the PCB for mechanical retention and ground connection.

Rated for operation from -20°C to 85°C, this plug suits equipment in unconditioned spaces — think industrial control panels or outdoor telecom enclosures. ROHS3 compliant.

Frequently asked questions

Where can I buy Molex 480370001?

The 480370001 is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — confirmed at quote time.

Is 480370001 a USB 2.0 or 3.0 connector?

It is a USB 2.0 Type-A plug. The specification field lists USB 2.0, and the 4-contact arrangement matches the USB 2.0 pinout (VBUS, D-, D+, GND).

What is the pinout of 480370001?

Standard USB 2.0 Type-A pinout: pin 1 VBUS (+5V), pin 2 D-, pin 3 D+, pin 4 GND.
