Molex 480372200

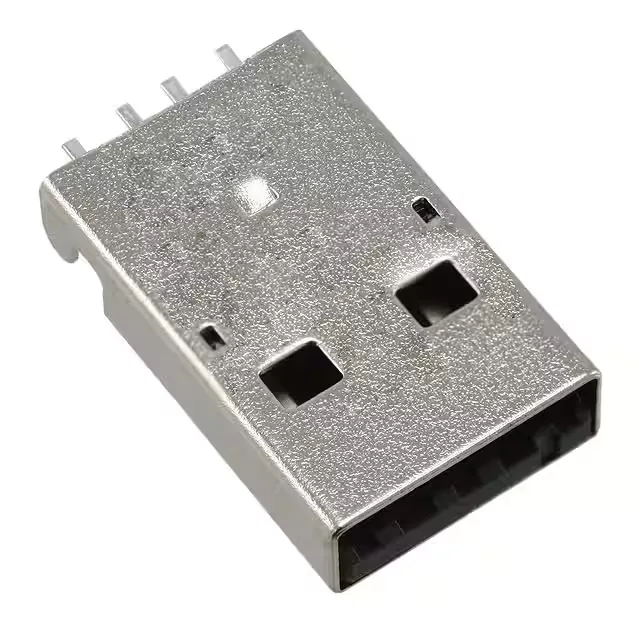

Molex 480372200 USB-A Plug, USB 2.0, 4P SMD RA

MPN 480372200
Active

Molex 48037 series USB-A (Type-A) plug, USB 2.0, 4 contacts, 1.5A, 150VAC, SMD right-angle, shielded, gold-plated contacts.

$1.45 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Series48037
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

480372200 key specifications
ParameterValue
Series48037
MountingSurface Mount, Right Angle; Through Hole
Connector typeUSB-A (USB TYPE-A)
Voltage - rated150VAC
Current rating1.5A
Positions4
Mounting featureHorizontal
Operating temperature-20°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Steel
Material flammability ratingUL94 V-0
GenderPlug

All specifications

480372200 additional specifications
ParameterValue
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Guide
ShieldingShielded
TerminationSolder
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

The Molex 480372200 is a USB-A (USB TYPE-A) plug from the 48037 series, built to the USB 2.0 specification with 4 contacts. It is a shielded, right-angle surface-mount design — the steel shell handles EMI containment, and the gold-plated contacts resist corrosion over repeated mating cycles. Rated 1.5A per contact at 150VAC, this is a standard USB 2.0 signal-and-power interface, not a high-current charging port. The operating range of -20°C to 85°C and UL94 V-0 housing make it suitable for commercial and industrial equipment inside an enclosure.

Mounting and Termination — What the Dual Option Means

The right-angle orientation places the USB port parallel to the PCB, typical for edge-mounted I/O panels.

Shielding and Signal Integrity — Why the Steel Shell Matters

The steel shell provides a grounded EMI shield around the USB signal pair. For a USB 2.0 link, that shield keeps common-mode noise from coupling into the data lines.

Sourcing and Lifecycle — Active and Available

The tape-and-reel packaging (also available as cut tape) suits volume pick-and-place or small-batch prototyping.
