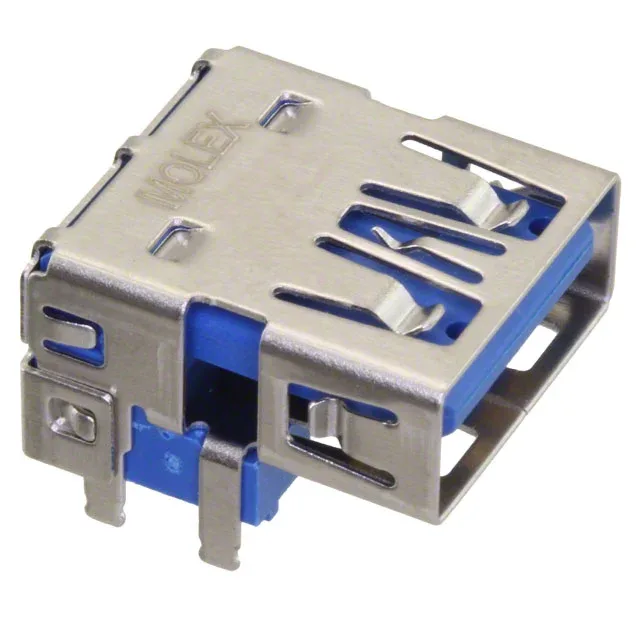

483910003 — Molex product photo
Molex

Molex 483910003 USB-A Receptacle, USB 3.2 Gen 1, 9 Contacts

MPN483910003
Active

Molex 48391 series USB-A receptacle, USB 3.2 Gen 1 (USB 3.0), 9 contacts, right-angle through-hole, shielded, gold contact finish, board lock, blue insulator.

$1.87Ref. price · indicative, final on quote
483910003 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

483910003 Technical Specifications
ParameterValue
Series48391
Mounting typeThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC/DC
Current rating0.25A, 1.8A
Positions9
Mounting featureHorizontal
Operating temperature-20°C ~ 85°C
Insulation colorBlue
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Number of ports1

Product details

The Molex 483910003 is a USB-A receptacle from the 48391 series, built for USB 3.2 Gen 1 (also known as USB 3.0 or SuperSpeed) data rates. Its 9 contacts — four legacy USB 2.0 pins plus five SuperSpeed differential pairs — fit the standard Type-A form factor. A shielded steel shell contains EMI from the 5 Gbps signaling, and the blue insulator visually flags the SuperSpeed capability at a glance.

Through-hole solder tails and integrated board locks anchor the connector against the shear force of repeated plug insertions.

Power and Signal Ratings

The dual current rating — 1.8 A on the power pins and 0.25 A on the signal contacts — matches the USB 3.0 power budget: the VBUS and GND pins carry up to 1.8 A for device charging or bus-powered peripherals, while the SuperSpeed differential pairs handle only signal-level current. The 30 VAC/DC rating covers the USB bus voltage and any downstream power delivery negotiation.

Frequently asked questions

Where can I buy 483910003 and how do I get a price?

The 483910003 is sourced to order through independent distribution. Submit an RFQ for current pricing and lead time — availability is confirmed at quote time.
