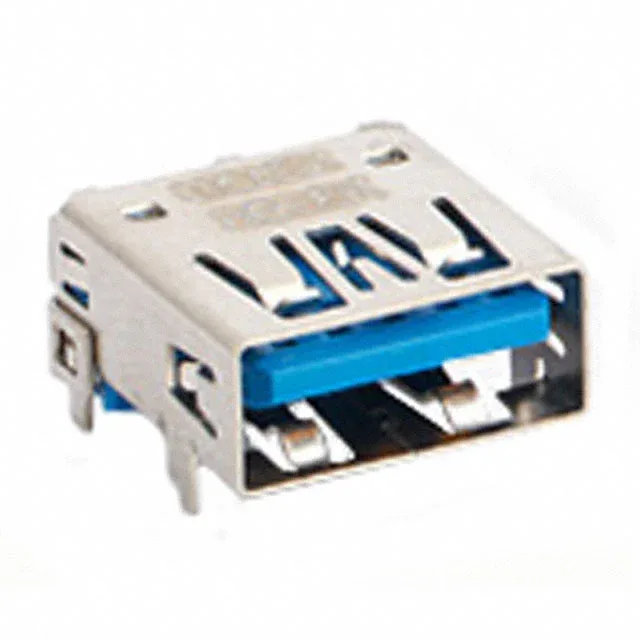

483930003 — Molex product photo
Molex

Molex 483930003 USB-A Receptacle, USB 3.2 Gen 1, 9 Pos R/A

MPN483930003
Active

Molex 48393 series USB-A receptacle, 9 contacts, USB 3.2 Gen 1 (Superspeed), right-angle through-hole, shielded, gold-plated contacts, 5000 mating cycles.

$3.16Ref. price · indicative, final on quote
483930003 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

483930003 Technical Specifications
ParameterValue
Series48393
Mounting typeThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC/DC
Current rating0.25A, 1.8A
Positions9
Mounting featureHorizontal
Operating temperature-20°C ~ 85°C
Insulation colorBlue
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Number of ports1

Product details

USB 3.2 Gen 1 Type-A, 9 Contacts, Right-Angle Through-Hole

The Molex 483930003 is a USB-A (USB Type-A) receptacle from the 48393 series, carrying a USB 3.2 Gen 1 (also known as USB 3.1 Gen 1 and USB 3.0) specification — meaning it supports 5 Gbps SuperSpeed data transfer while remaining backward-compatible with USB 2.0 and 1.1 devices. Its 9 contacts break out as the standard 4-pin USB 2.0 set plus 5 SuperSpeed signal contacts, all in the familiar Type-A form factor that mates with any standard USB-A plug. The shielded steel/stainless shell provides both EMI containment and mechanical robustness at the mating interface. Rated for 5000 mating cycles, this receptacle is suited for applications where the port sees frequent plug/unplug duty.

Current Ratings and Contact Finish

The current rating is split by pin function: 0.25 A on the SuperSpeed signal contacts and 1.8 A on the power/VBUS contacts.
