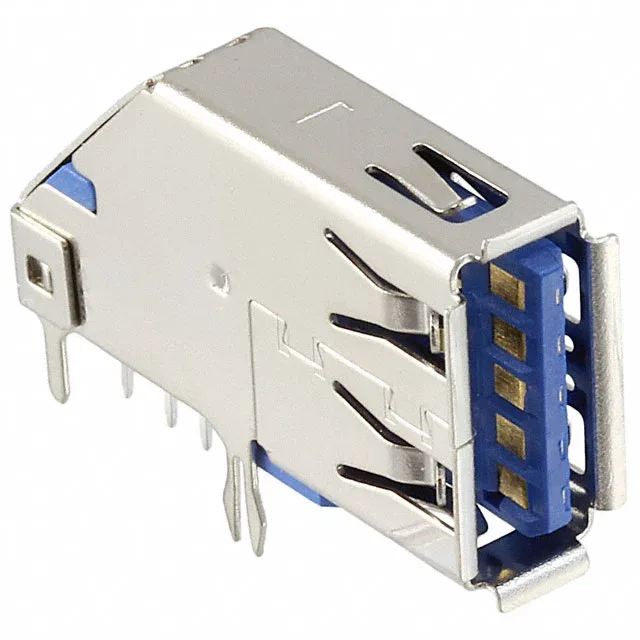

Molex 484040003 USB 3.2 Gen 1 Type-A Receptacle, 9 Pos R/A

MPN484040003
Active

Molex 48404 series USB 3.2 Gen 1 Type-A receptacle, 9 contacts, right-angle through-hole, shielded, board lock, gold-plated contacts, 0.25A/1.8A dual rating, 30VAC/DC, 5000 mating cycles.

$2.62Ref. price · indicative, final on quote
484040003 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

484040003 Technical Specifications
ParameterValue
Series48404
Mounting typeThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC/DC
Current rating0.25A, 1.8A
Positions9
Mounting featureVertical
Operating temperature-20°C ~ 85°C
Insulation colorBlue
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 HB
GenderReceptacle
PackageTray
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Number of ports1

Product details

USB 3.2 Gen 1 Type-A Receptacle, 9 Contacts, Right-Angle Through-Hole

The Molex 484040003 is a USB 3.2 Gen 1 (USB 3.0 / Superspeed) Type-A receptacle from the 48404 series, carrying 9 contacts in a single-port, right-angle through-hole package. This is the standard upstream-facing USB-A port found on host devices, designed for board-edge mounting where the cable plug inserts parallel to the PCB. The 9-contact layout supports the SuperSpeed differential pair (SSRX+/-, SSTX+/-) plus the legacy USB 2.0 D+/D- and power/ground lines, all in a single shielded shell.

Dual Current Rating and Contact Assignment

The current rating splits into two tiers: 1.8 A per contact on the power delivery pins (VBUS and GND), and 0.25 A per contact on the signal lines. This is typical for USB 3.x receptacles — the higher-current pins handle device charging and bus power, while the signal contacts carry only data. The 30 VAC/DC rating covers the USB bus voltage comfortably. Gold plating on the contacts ensures consistent low resistance over the rated 5000 mating cycles, which is a high-durability spec for a USB port — suited for test equipment, industrial panels, or public kiosk interfaces where the connector sees frequent plug/unplug cycles.

Shielded Shell with Board Lock for Mechanical Retention

The steel/stainless steel shell provides full EMI shielding.

The tray packaging suits automated pick-and-place assembly for the through-hole solder process.

Frequently asked questions

What is the difference between 484040003 and 484040001?

Both are 9-contact USB 3.2 Gen 1 Type-A receptacles in the 48404 series. The primary difference is the shell plating and board lock configuration — the 484040003 uses a steel/stainless steel shell with board lock features, while the 484040001 may use a different shell material or omit the board lock. Verify the mechanical footprint against your PCB layout before substituting.
