USB 3.0 Type-A Port for Board-Edge Integration

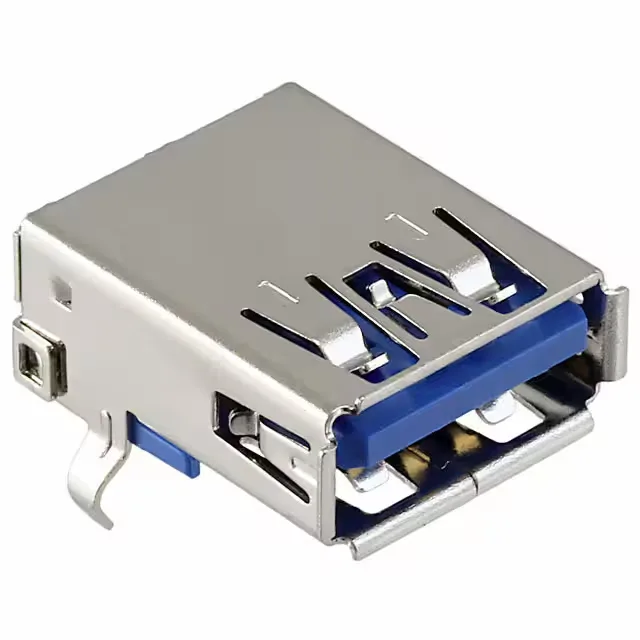

The Molex 484050003 is a 9-contact USB 3.2 Gen 1 (formerly USB 3.0) Type-A receptacle from the 48405 series, designed for right-angle through-hole mounting. Its 9 contacts—four standard USB 2.0 pins plus five SuperSpeed differential pairs—enable 5 Gbps signaling. The stainless steel shell provides full shielding for EMI containment, critical for maintaining signal integrity at SuperSpeed data rates. Board locks on the mounting tabs anchor the connector during wave soldering and resist the shear forces from repeated cable insertion and removal. Gold plating on the contacts ensures corrosion resistance over the 5000-cycle rated life.
Current Allocation: Signal vs Power Paths
The dual current rating—0.25A on signal contacts and 1.8A on power contacts—reflects the USB 3.0 pin assignment. The four SuperSpeed differential pairs and the USB 2.0 D+/D- lines carry only signaling current, while the VBUS and GND pins handle device power. The 1.8A power rating covers the standard USB 3.0 900 mA charging requirement with margin, but does not support high-current charging protocols like USB BC 1.2 or USB PD without external negotiation.
Mating Cycles and Mechanical Durability
Standard consumer USB ports are often rated 1500 cycles; the 5000-cycle rating here suits applications where the port sees frequent reconnection—test fixtures, industrial programming interfaces, public kiosks, or lab equipment. The gold-over-nickel contact finish supports this cycle life without exposing base metal at the wipe interface.
