Molex 484060003

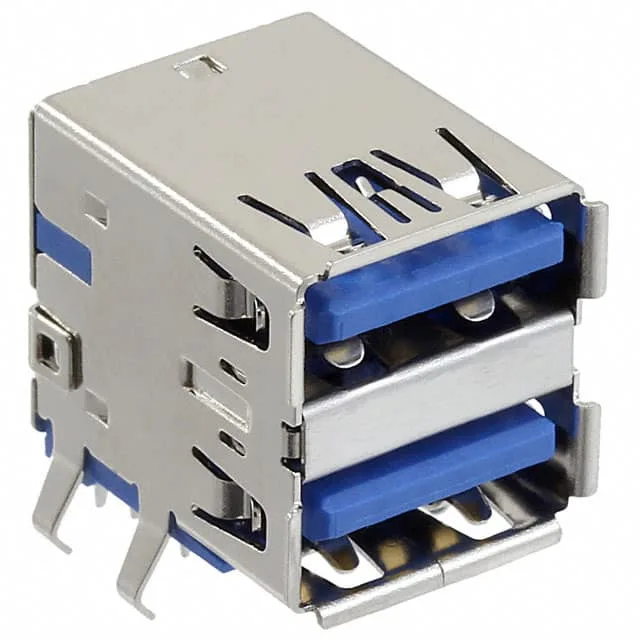

Molex 484060003 USB-A Stacked Receptacle, 18 Contacts

MPN 484060003
Active

Molex 48406 series, USB-A (USB TYPE-A) stacked receptacle, 18 contacts, 2 ports, right-angle through-hole, shielded, gold contacts, board lock, USB 3.2 Gen 1.

$2.66 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Series48406
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

484060003 key specifications
ParameterValue
Series48406
MountingThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A), Stacked
Voltage - rated30VAC/DC
Current rating0.25A, 1.8A
Positions18
Mounting featureHorizontal
Operating temperature-20°C ~ 85°C
Insulation colorBlue
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 HB
GenderReceptacle

All specifications

484060003 additional specifications
ParameterValue
PackageTray
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Number of ports2

Product details

Dual-Port USB 3.2 Gen 1 Stacked Receptacle for Board-Edge I/O

The Molex 484060003 is a stacked USB-A receptacle designed for board-edge mounting, providing two Type-A ports in a single through-hole package. It carries 18 contacts total — 9 per port — wired for USB 3.2 Gen 1 (5 Gbps SuperSpeed) with the full complement of signal, power, and ground pins. The shell is shielded with a steel/stainless material, and a board lock on the mounting tabs anchors the connector against insertion and extraction forces during repeated cable mating.

Current Allocation and Contact Plating

The current rating splits by pin function: 0.25 A per contact on the SuperSpeed signal pairs and 1.8 A per contact on the VBUS and ground pins. This split is standard for USB 3.0/3.1 Gen 1 receptacles — the lower rating on the high-speed lanes reflects the fine-pitch signal contacts, while the power pins carry the bus-level current for connected devices.

Temperature Range and Envelope Fit
