Molex 484080003

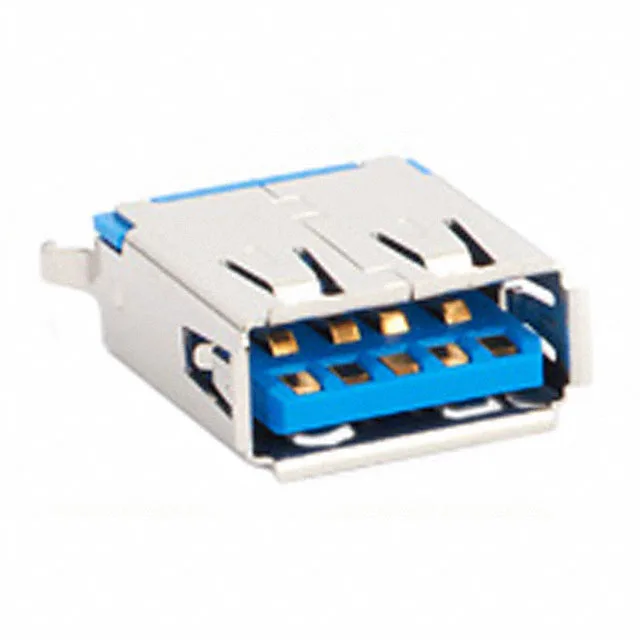

Molex 484080003 USB 3.2 Gen 1 Type-A Receptacle, 9P Vertical

MPN 484080003
Active

Molex 48408 series USB 3.2 Gen 1 Type-A receptacle, 9 contacts, 1 port, vertical through-hole, shielded, board lock, gold plating, 0.25A/1.8A, 30VAC/DC.

$1.41 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Series48408
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

484080003 key specifications
ParameterValue
Series48408
MountingThrough Hole
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC/DC
Current rating0.25A, 1.8A
Positions9
Mounting featureVertical
Operating temperature-20°C ~ 85°C
Insulation colorBlue
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 HB
GenderReceptacle

All specifications

484080003 additional specifications
ParameterValue
PackageTray
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Number of ports1

Product details

The Molex 484080003 is a USB 3.2 Gen 1 (formerly USB 3.0 / SuperSpeed) Type-A receptacle, part of the 48408 series. It is a 9-contact, 1-port, vertical-mount through-hole connector with a shielded shell and board locks for solder-joint strain relief. The blue insulation color is standard for USB 3.0 SuperSpeed receptacles, visually distinguishing it from USB 2.0 black/white versions. This connector is designed for front-panel or PCB-edge mounting in equipment requiring the full 5 Gbps SuperSpeed data rate — think industrial PCs, test instruments, docking stations, and data acquisition front ends.

SuperSpeed Signal Path and Current Budget

The 9-contact layout is what distinguishes USB 3.x from USB 2.0 (which uses 4 pins). The additional five contacts carry the SuperSpeed differential pairs (SSTX+, SSTX-, SSRX+, SSRX-, and a dedicated GND drain). The dual current rating — 0.25A on the signal contacts and 1.8A on the power/VBUS contacts — reflects this split: the high-speed differential pairs are not designed for power delivery, while VBUS and GND handle the standard 900 mA USB 3.0 power budget with margin. For applications needing more than 1.8A, a separate power connector is required.

Rugged Enough for Repeated Mating

Rated for 5000 mating cycles, this receptacle is built for ports that see frequent connect/disconnect — test jigs, programming stations, public kiosk ports, or lab equipment front panels.

MPN
484080003
