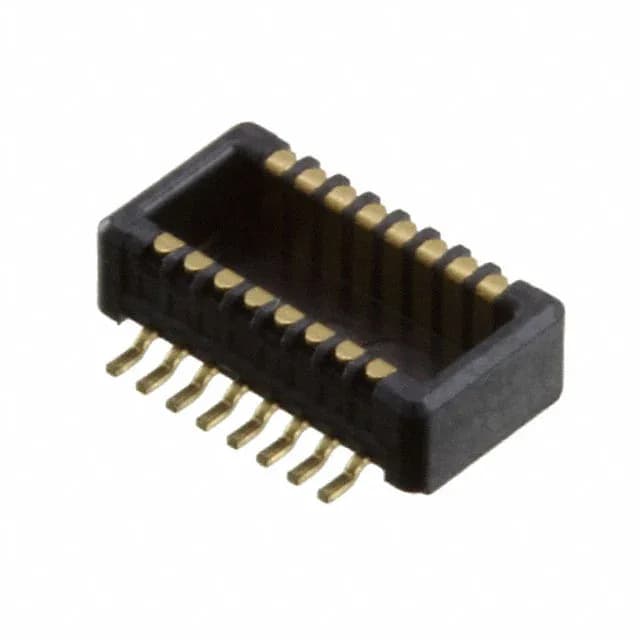

Molex SlimStack 5003340160, 16-Pin 0.50mm Pitch Plug

MPN5003340160
Active

Molex SlimStack 500334 series, Plug Outer Shroud Contacts, 16 circuits, 0.50mm pitch, 2 rows, 2.5mm mated stacking height, Gold 10.0µin, SMT.

$1.1200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSlimStack 500334
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5003340160 specifications
ParameterValue
SeriesSlimStack 500334
MountingSurface Mount
Connector typePlug, Outer Shroud Contacts
Height above board0.058\" (1.48mm)
Mated stacking heights2.5mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
Contact finishGold
Rows2
Positions16
Contact finish thickness10.0µin (0.25µm)

Product details

Board-Stacking Fit: 16 Circuits at 0.50mm Pitch

The Molex 5003340160 is a 16-position plug from the SlimStack 500334 series, designed for parallel board-to-board mezzanine connections.

What the 2.5mm Stack Height Means for Your Board Gap

The 2.5mm mated stacking height is the fixed z-axis dimension once the plug mates with its matching SlimStack receptacle. That 2.5mm gap between the two PCBs is non-negotiable — your enclosure, component height on the underside, and any keep-out zones must clear this.

Frequently asked questions

What is the mated stacking height of the Molex 5003340160?

The mated stacking height is 2.5mm once the plug is fully seated into its matching SlimStack receptacle.
