Molex 5009130702

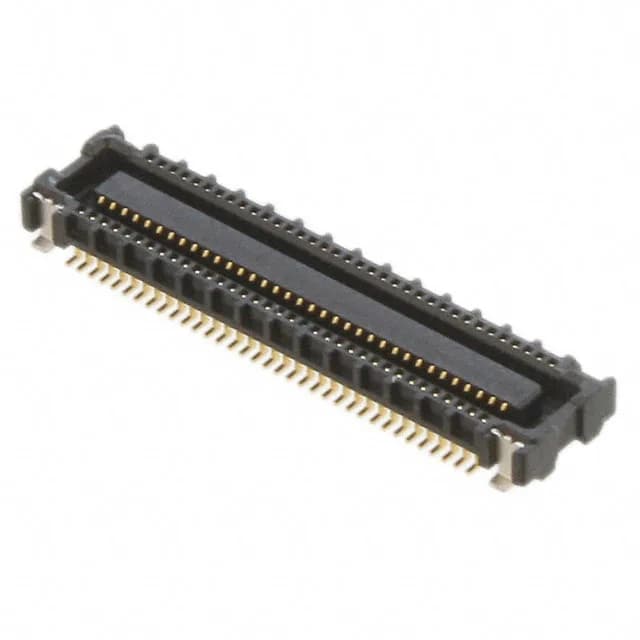

Molex SlimStack 5009130702, 70 Pos 0.40mm Pitch Receptacle

MPN 5009130702
Active

Molex SlimStack 500913 series, 5009130702, 70-position receptacle, 0.016" (0.40mm) pitch, dual-row, SMT, gold-plated contacts, 1.8mm mated stacking height.

$2.9100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesSlimStack 500913
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5009130702 specifications
ParameterValue
SeriesSlimStack 500913
MountingSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.063\" (1.60mm)
Mated stacking heights1.8mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions70
Contact finish thickness8.00µin (0.203µm)

Product details

70-Position, 0.40 mm Pitch Mezzanine Receptacle for Tight Stack Heights

The Molex 5009130702 is a 70-position receptacle from the SlimStack 500913 series, designed for board-to-board mezzanine stacking at a mated height of 1.8 mm.

SMT Termination with Solder Retention

The Tape & Reel packaging (also available in Cut Tape) feeds directly into a pick-and-place line — no hand placement needed for volume builds.

The 5009130702 mates with the corresponding SlimStack 500913 header to achieve a 1.8 mm mated stack height. That 1.8 mm is the total z-height from the bottom of the receptacle PCB to the top of the header PCB — critical for enclosures with tight board-to-board clearance. The 0.40 mm pitch means the header and receptacle must be from the same series; there is no cross-mating with wider-pitch SlimStack variants.

MPN
5009130702
