20-pin 1 mm pitch SMT header with latch holder

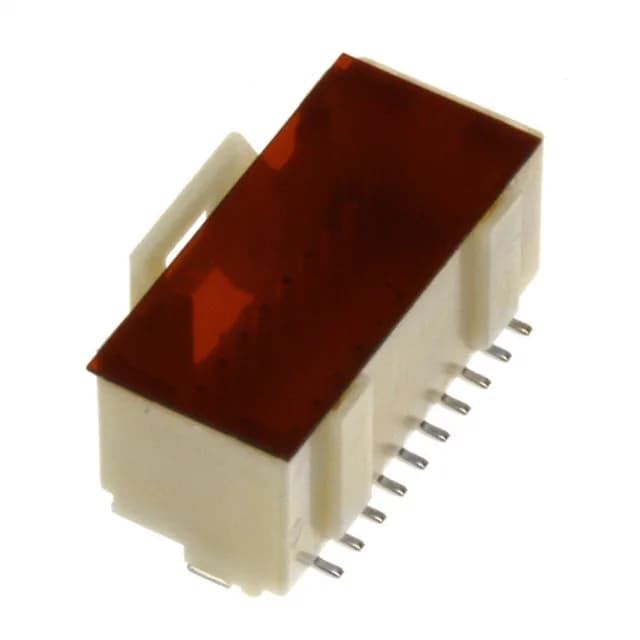

Molex 5011902017 is a 20-position, 1.00 mm pitch surface-mount header from the Pico-Clasp 501190 series. It uses a latch holder fastening type — the mating receptacle clicks in and stays put under vibration, which matters for cable-to-board connections in portable or moving assemblies. The contact base is phosphor bronze, a standard spring alloy for this pitch class.
Board-fit details: stack height, retention, and assembly
Row spacing is 2.66 mm, with two rows of 10 pins each. The insulation material is polyamide (nylon), rated UL94 V-0 for flammability.
The base product number is 501190; the full order code 5011902017 specifies the 20-position, SMT, gold-plated variant.
