Molex 5013301000

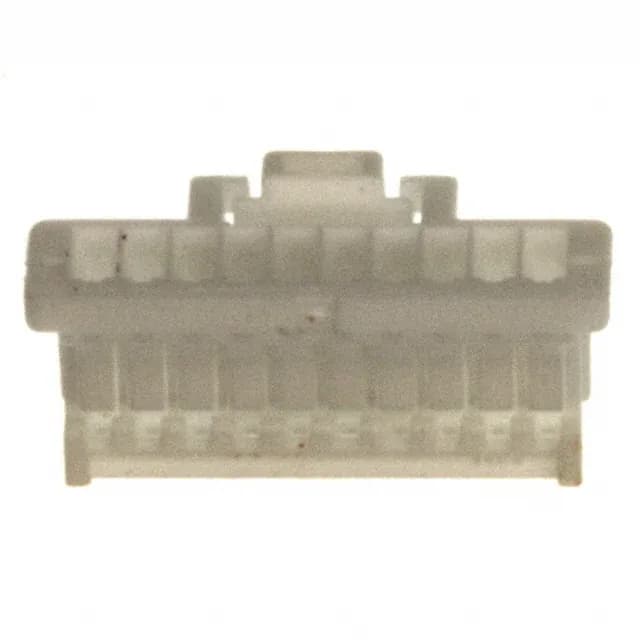

Molex Pico-Clasp 5013301000, 10-Pos Receptacle Housing

MPN 5013301000
Active

Molex Pico-Clasp 501330, receptacle housing, 10 positions, 1.00mm pitch, single row, free-hanging, crimp termination, locking ramp, white, bulk.

$0.4600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesPico-Clasp 501330
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5013301000 specifications
ParameterValue
SeriesPico-Clasp 501330
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
Operating temperature-40°C ~ 105°C
ColorWhite
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.039\" (1.00mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions10

Product details

The Molex 5013301000 is a 10-circuit single-row receptacle housing from the Pico-Clasp 501330 series, built for wire-to-board interconnects at a 1.00 mm pitch.

Mating and Termination — What to Order Alongside

This housing mates with a Pico-Clasp 1.00 mm pitch header — the board-mount side. The mating header order code depends on your orientation and mounting: Molex 501330 series headers with the same 10-circuit count and 1.00 mm pitch are the direct mate.
