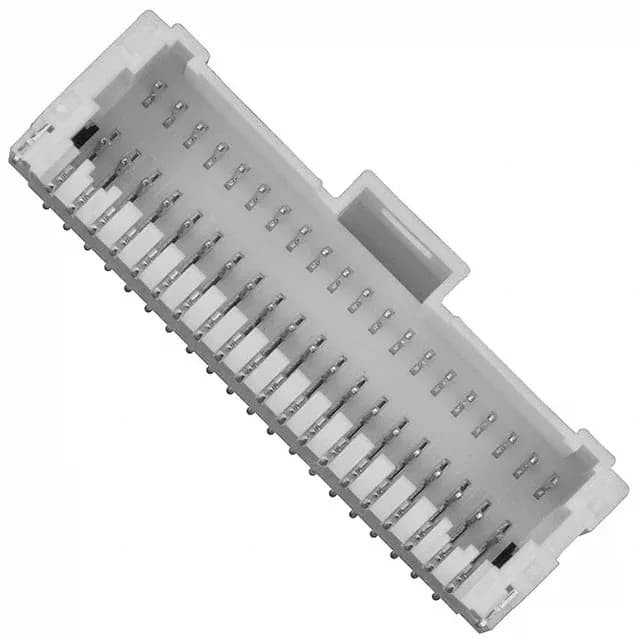

Molex Pico-Clasp 501571 series, 5015714007, 40-position dual-row header, 1.00 mm pitch, surface-mount right-angle, gold-plated contacts, latch holder, UL94 V-0, active production.
| Parameter | Value |
|---|---|
| Series | Pico-Clasp 501571 |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.325\" (8.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Parameter | Value |
|---|---|
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 40 |
| Row spacing - mating | 0.105\" (2.66mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The 5015714007: The 0.325" (8.25 mm) insulation height gives clearance for the latch holder mechanism and the mating receptacle's strain relief.
This header mates with standard Pico-Clasp 501571 series receptacles (crimp or IDC type). The shrouded 4-wall housing and latch holder provide keyed alignment and positive lock — the latch clicks on full mate, which is the field check for proper engagement.
Yes, it mates with Pico-Clasp 501571 series receptacles. The 4-wall shrouding and latch holder ensure keyed alignment and a positive lock.
Yes, it is ROHS3 compliant per the manufacturer's listing.
