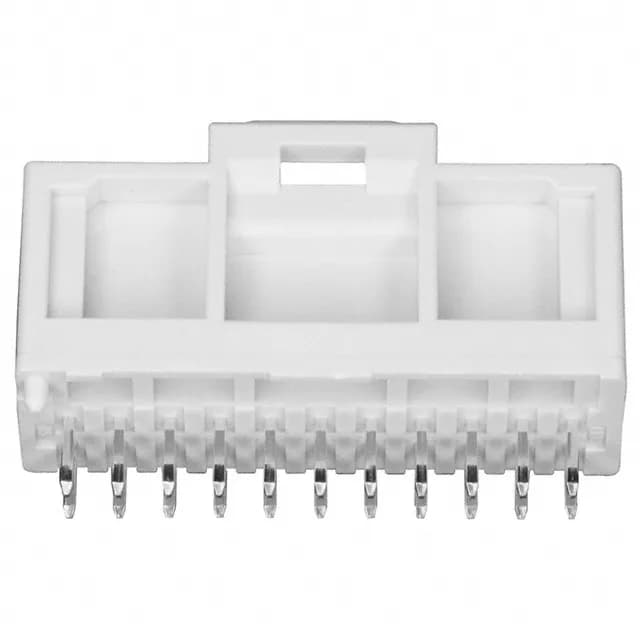

Molex 5016452220 iGrid Header 22 Pos 2mm Vertical Shrouded

MPN 5016452220
Active

Molex iGrid 501645 series, 5016452220, Board to Cable/Wire header, 22 circuits, 2.00mm pitch, vertical through-hole, shrouded 4-wall, latch holder, tin-plated male pins, UL94 V-0

$1.2500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesiGrid 501645
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5016452220 key specifications
ParameterValue
SeriesiGrid 501645
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Contact materialBrass
Insulation colorNatural
Insulation height0.472\" (12.00mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray

All specifications

5016452220 additional specifications
ParameterValue
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions22
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingTin

Product details

22-position vertical header with latch retention

Rated UL94 V-0, the glass-filled PA66 housing handles the temperature and flame requirements inside an equipment enclosure.

ROHS3 compliant and lead-free per the current revision. No direct replacement or cross listed; the 501645 base number covers the series.
