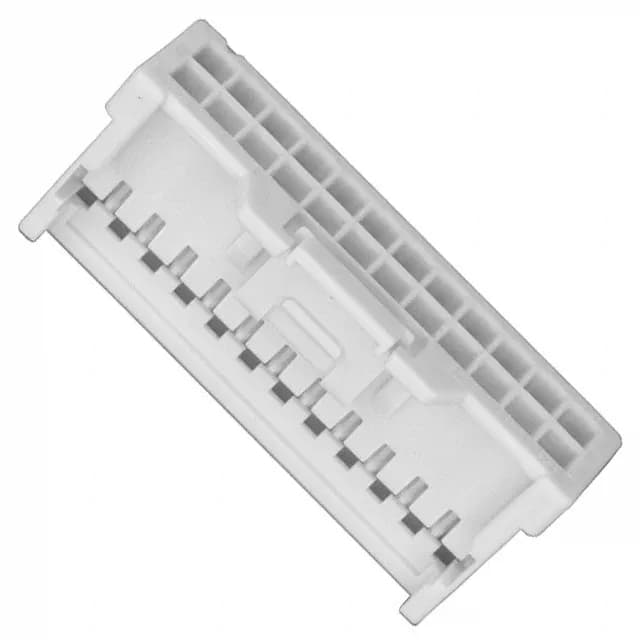

Molex iGrid 501646 series, 5016462400, receptacle housing, 24 positions, 2 rows, 2.00 mm pitch, latch lock, natural PA66, crimp termination, free hanging, -40°C to 105°C, contacts not included.
| Parameter | Value |
|---|---|
| Series | iGrid 501646 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 105°C |
| Color | Natural |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Row spacing | 0.079\" (2.00mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 24 |
The 5016462400 is a 24-position, dual-row receptacle housing on 2.00 mm pitch from the iGrid 501646 series.
That symmetrical grid means the mating pin header must also be dual-row 2.00 mm pitch – the iGrid 501647 series headers are the direct match. No other 2.00 mm dual-row housing from a different series will align without a footprint check.
No.
The mating pin header is a dual-row, 2.00 mm pitch, 24-position header from the Molex iGrid 501647 series. Confirm the header's pin length and plating (tin or gold) match your wire gauge and mating cycle requirements.
