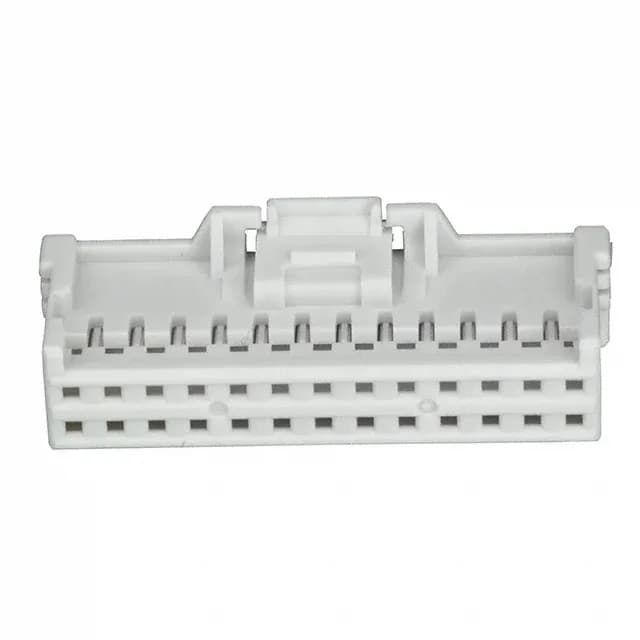

Molex iGrid 501646 series receptacle housing, 5016462600, 26 positions, 2 rows, 2.00 mm pitch, latch lock, free hanging, natural PA66, crimp termination, -40°C to 105°C, contacts not included.
| Parameter | Value |
|---|---|
| Series | iGrid 501646 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 105°C |
| Color | Natural |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Row spacing | 0.079\" (2.00mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 26 |
The 26 female socket cavities accept the matching iGrid crimp terminals (sold separately), which are terminated to wire before insertion. For a harness builder, this means ordering the housing and terminals as separate line items, and confirming the terminal part number matches the wire gauge planned for the build.
The pitch is 2.00 mm (0.079"), with the same 2.00 mm row spacing in the dual-row layout. This is a standard fine-pitch class for compact wire-to-board interconnects.
