Molex 5016463000

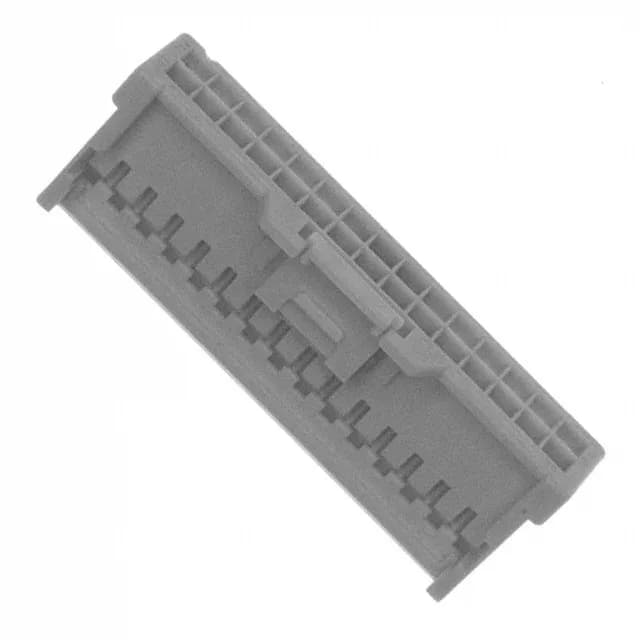

Molex iGrid 5016463000 Receptacle Housing, 30 Pos, 2.00mm

MPN 5016463000
Active

Molex iGrid 501646 series receptacle housing, 30 positions, 2.00mm pitch, dual row, natural PA66 nylon, latch lock, crimp termination, free-hanging, contacts not included.

$1.2300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesiGrid 501646
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5016463000 specifications
ParameterValue
SeriesiGrid 501646
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-40°C ~ 105°C
ColorNatural
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBulk
Row spacing0.079\" (2.00mm)
Rows2
Contact terminationCrimp
Positions30

Product details

30-Position iGrid Receptacle Housing — 2.00 mm Pitch, Dual Row

The Molex 5016463000 is a 30-circuit receptacle housing from the iGrid 501646 series, built for wire-to-board harness applications where a compact 2.00 mm pitch keeps the board footprint tight while still allowing dual-row routing.

The 2.00 mm pitch is the defining dimension of the iGrid series — it gives enough room between contacts for 24-30 AWG wire with standard crimp terminals, while keeping the overall connector width under 25 mm for the 30-position version. The dual-row layout (two rows of 15) means the connector body is longer than a single-row 30-position, but the board-side header footprint stays narrow, which helps when routing traces between the rows on a dense PCB.

This housing accepts the iGrid female socket crimp terminals (Molex order code 501646 series terminals, typically tin or gold plated depending on the mating cycle requirement).
