Molex 5016463600

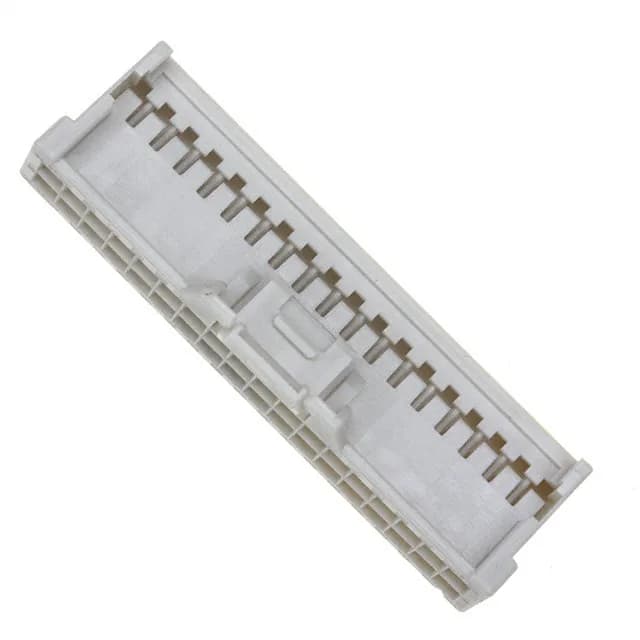

Molex iGrid 5016463600 Receptacle Housing, 36 Pos, 2.00mm

MPN 5016463600
Active

Molex iGrid 501646 series receptacle housing, 36 positions, 2.00mm pitch, dual-row, free-hanging, crimp termination, latch lock, natural PA66, contacts not included.

$2.2400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesiGrid 501646
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5016463600 specifications
ParameterValue
SeriesiGrid 501646
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-40°C ~ 105°C
ColorNatural
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBulk
Row spacing0.079\" (2.00mm)
Rows2
Contact terminationCrimp
Positions36

Product details

36-Circuit iGrid Receptacle Housing — What It Is and What It Needs

The Molex 5016463600 is a 36-circuit receptacle housing from the iGrid 501646 series, built for free-hanging wire-to-board or wire-to-wire harness assemblies. It carries a 2.00 mm pitch across two rows, with the same 2.00 mm row spacing, giving a compact 36-position layout that fits the iGrid footprint standard.

The 36 female socket cavities accept the iGrid 501646-series crimp terminals (order separately), which are terminated to the wire before insertion. The housing's natural colour is the factory default for the PA66 material; no colour-coding for keying is present on this variant.
